How building information modeling helps architects prevent design clashes

Building information modeling for architects helps prevent design clashes early, improve coordination, protect clearances, and reduce costly site changes.
Analyst :Chief Civil Engineer
Sep 08, 2026
How building information modeling helps architects prevent design clashes

Design clashes rarely begin as dramatic failures. They often start with a ceiling that looks clear in an architectural view, a beam that has shifted in the structural model, or a duct route that was developed before the latest room layout was issued. By the time those decisions meet on site, the conflict may become a blocked installation path, an unbuildable service zone, or a late request for information that affects several trades.

Building information modeling helps architects prevent design clashes by turning separate design intentions into coordinated, testable model information before construction begins. The value is not simply that a 3D model looks more realistic than drawings. A properly managed BIM process allows architectural, structural, and MEP elements to be checked for physical intersections, insufficient clearance, access constraints, and coordination inconsistencies. The earlier the model reveals a conflict, the more options the team usually has to resolve it without redesigning completed work.

Clash prevention starts before automated clash detection

A clash-detection report can identify thousands of intersections, but not all of them represent meaningful problems. Some are intentional connections, some arise from modeling conventions, and others reflect elements that are too generic to support a valid coordination decision. Effective clash prevention therefore begins with model readiness, not with pressing a “run test” button.

Architects have a central role because the architectural model frequently establishes the spatial rules that other disciplines must work within: floor-to-floor heights, room boundaries, wall types, door clearances, ceiling zones, shafts, risers, plant-room footprints, façade systems, and maintainable access routes. When these items are incomplete, outdated, or modeled inconsistently, downstream coordination becomes unreliable.

Before models are federated, teams should agree on practical rules such as:

  • which discipline owns each type of element and which model is authoritative;
  • the coordinate system, project base point, north orientation, and elevation datum;
  • required model detail for the current design stage;
  • how linked models, revisions, and issue status will be managed;
  • which elements require clearance zones rather than simple geometry checks;
  • what constitutes a reportable clash and what may be treated as an accepted condition.

These decisions may seem administrative, yet they determine whether a detected issue can be understood and assigned. A duct passing through a wall may be a genuine design clash, an intended penetration awaiting a sleeve, or a modeling artifact caused by an uncoordinated reference model. Without shared rules, the report does not distinguish between these conditions.

The coordination moment where architectural decisions become construction risks

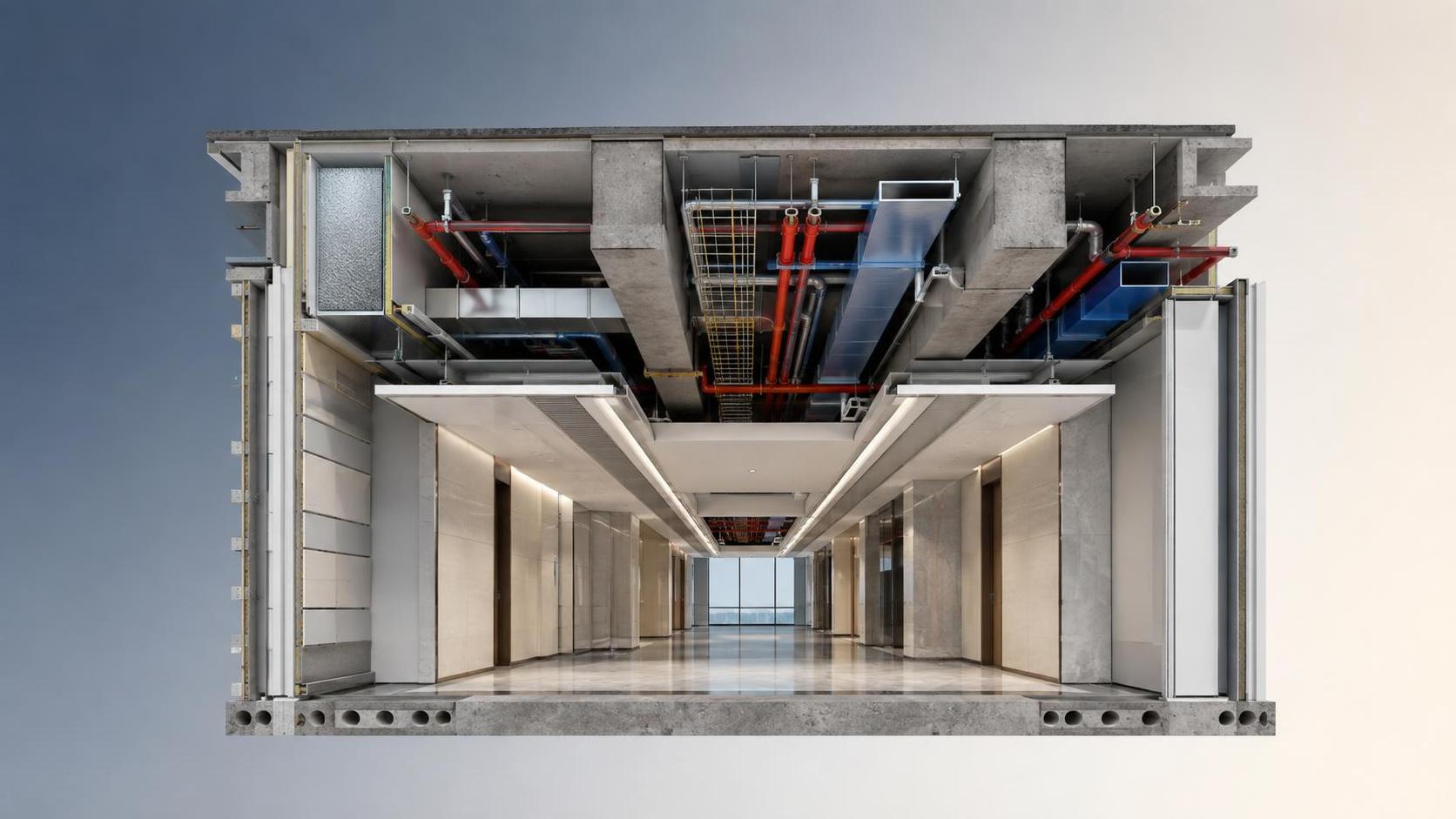

Consider a common coordination sequence. The architectural ceiling plan reserves a clean visual plane in a corridor. The structural model includes deep beams at regular intervals. The MEP team then routes ductwork, cable containment, sprinklers, and pipework through the remaining void. Each discipline may have made a reasonable decision in isolation. The combined result, however, may leave no viable route that preserves headroom, fire protection, access panels, and required service separation.

This is where building information modeling for architects becomes a design-control process rather than a drafting method. The architectural team can test whether its intended ceiling elevation is compatible with the real volume required by structure and services. It can also make deliberate choices: raise the floor zone, lower a local ceiling, enlarge a riser, relocate a beam opening, alter room adjacencies, or create coordinated bulkheads where they are least disruptive.

Resolving that question in a shared model is different from merely marking up a reflected ceiling plan. The model can show whether the adjustment affects doors, glazing heads, façade interfaces, fire-rated partitions, acoustic details, accessibility clearances, and maintenance routes. It exposes the connected consequences of a spatial decision.

How building information modeling helps architects prevent design clashes

Not every clash is the same

Teams often lose time because every automated result is treated with equal urgency. A useful review process separates clashes by the type of risk they represent. The classification should be simple enough to apply consistently but specific enough to guide action.

Clash type What the model may reveal Typical architectural response
Hard clash Two modeled objects occupy the same physical space, such as a duct through a beam or pipe through a wall. Confirm whether the intersection is intended. If not, coordinate a reroute, opening, revised level, or changed layout.
Soft clash An object does not intersect another element but violates a required clearance, insulation zone, access area, or construction tolerance. Review operational and installation requirements, not just geometry. Reserve space for access panels, valve operation, equipment removal, and finishes.
Workflow clash Elements can physically coexist but cannot be installed or maintained in the intended sequence. Check construction access, temporary works, assembly order, and whether partitions or ceilings close off required routes.
Information clash Models align geometrically but contain conflicting metadata, revisions, levels, system identities, or fire-performance requirements. Verify the governing schedule, room data, classification, and specification responsibility before issuing coordinated documentation.

Hard clashes are the most visible, but soft and workflow clashes often create more difficult site problems. A plant item may fit within a room while its filter cannot be removed. A service riser may contain all systems in plan but leave no practical installation sequence. A door can swing without touching a pipe, yet still prevent access to an electrical panel. Geometry alone does not prove constructability.

Build a coordination model that can answer real questions

The architectural model should not attempt to duplicate every engineering component. Its purpose is to provide reliable spatial and performance information at the level required for coordination. The model must be detailed enough to represent the boundaries that matter, while remaining controlled and maintainable.

Model the elements that define space, not only visible finishes

Walls modeled as thin graphic surfaces, ceilings without build-up depth, and generic floor slabs can produce misleading clearances. Where the design stage requires coordinated routing, models should reflect meaningful physical extents: structural zones, ceiling voids, raised floors, façade support areas, shaft linings, door-frame geometry, fixed furniture, sanitary fixtures, and major equipment envelopes.

The level of detail should match the decision being made. During early layout development, broad service zones and equipment footprints may be enough to test whether a plant room or riser is fundamentally viable. Before construction documentation, exact penetrations, access allowances, mounting zones, and interfaces may be necessary. Adding fabrication-level detail too early can slow model performance and create a false sense of certainty; leaving essential spatial geometry too vague delays preventable decisions.

Use clearance volumes deliberately

A recurring mistake is to model only the installed object. Many coordination requirements exist around an object rather than inside its solid geometry. A maintenance zone in front of an electrical cabinet, the opening arc of a door, a required corridor headroom volume, and the service space above a ceiling all need to be made visible or checked through defined rules.

Clearance volumes do not need to become permanent design geometry. They can be separate coordination objects, discipline-specific zones, or rule-based tests. What matters is that the team knows whether they are included in the clash scope. Otherwise, a report may appear clean while the completed space remains impossible to use or service.

A practical sequence for resolving detected issues

Once models are federated, the quality of issue handling matters as much as the test itself. A long report sent by email without priorities, viewpoints, or ownership tends to generate duplicate work. A controlled issue workflow makes coordination decisions traceable and keeps resolved items from returning in later revisions.

  1. Confirm the model versions. Check that each discipline has issued the expected revision and that links are aligned to the agreed coordinates and levels. Do not review a clash as a design fault until basic model alignment has been verified.
  2. Apply focused test sets. Instead of comparing every object with every other object, test meaningful relationships: structure against major services, ceilings against services, doors against furniture and equipment, façade zones against structural supports, and shafts against all routed systems.
  3. Group repeated conditions. A duct crossing a repeated beam grid may create many identical clashes. Review the underlying design condition once, then identify whether a single rule change resolves the group. Treating each occurrence as unrelated obscures the real decision.
  4. Assess severity in context. An intersection in a flexible ceiling void is not equivalent to a conflict in a fire-rated shaft, a low-headroom route, or a highly constrained plant room. Prioritization should reflect safety, constructability, performance, and the cost of late change.
  5. Assign one owner and one due decision. A clash can involve several disciplines, but it still needs a clear person or team responsible for proposing the next move. The issue record should state the affected location, models reviewed, required decision, and agreed response date.
  6. Verify the fix in the federated model. Closing an issue because a designer says it has been adjusted is insufficient. The revised geometry must be checked against the latest models and against any clearance or sequencing requirement.

Architects should be cautious about resolving engineering conflicts by moving architectural elements without checking their broader design implications. Relocating a partition may affect room areas, accessibility, fire strategy, acoustic performance, finishes, and door coordination. The model helps reveal these consequences, but the decision still requires discipline accountability.

Where clash detection can mislead a review team

Automated checking is powerful, but it can create noise. The most common source is poor tolerance management. A zero-tolerance test may flag tiny overlaps caused by rounding, model conversion, or finish layers that do not represent a construction conflict. A tolerance that is too generous can hide real problems at walls, slabs, openings, and congested service routes.

The appropriate tolerance depends on the design phase, element type, and construction method. Rather than using one universal value, teams can define different rules for structural penetrations, service clearance zones, finish interfaces, and intentionally connected elements. The key is to record the logic. A reviewer should be able to understand why a category of clashes was excluded or accepted.

Another risk is relying on snapshots rather than live model context. A viewpoint is useful for communication, but it may conceal a nearby condition that changes the solution. When reviewing a reported clash, inspect surrounding levels, connected elements, system routes, and room boundaries. A local reroute can shift the problem into the next bay, reduce ceiling clearance, or block an access route.

Architectural areas that deserve early coordination attention

Some locations produce disproportionate coordination risk because multiple constraints converge there. They should be tested before the design becomes difficult to move.

  • Service risers and shafts: Check not only plan fit but also vertical continuity, fire-rated boundaries, access requirements, slab openings, and the space needed for supports and installation.
  • Plant rooms: Validate equipment footprints, service connections, maintenance envelopes, door openings, replacement paths, drainage, and structural support zones.
  • Ceiling-intensive spaces: Corridors, lobbies, kitchens, laboratories, washrooms, and spaces with dense lighting or specialist equipment often need early service zoning.
  • Façade interfaces: Structural brackets, insulation, drainage paths, window heads, perimeter fire stopping, blinds, and interior finishes may compete for the same narrow zone.
  • Door and access zones: Door swing is only one variable. Review circulation width, equipment access, panel clearance, furniture layouts, and escape-route requirements together.
  • Transitions between systems: Changes in floor level, ceiling height, structural depth, wall type, or building use frequently create coordination gaps between otherwise well-developed areas.

Assessing whether a BIM workflow is actually preventing clashes

A mature workflow should be judged by more than the number of issues found. A rising clash count can indicate better model completeness, while a low count may simply reflect limited scope or weak model detail. The more useful question is whether the process identifies material conflicts early enough for informed design decisions.

When evaluating a BIM approach, look for evidence that the team can answer the following: Are clash rules linked to project-specific risks? Are architectural constraints represented at a useful level of detail? Can issues be traced to a model version and a responsible discipline? Are repeated clashes analyzed as design patterns rather than closed one by one? Does the process test access, clearance, and installation logic as well as physical intersections?

A workflow is also stronger when coordination meetings focus on unresolved decisions rather than scrolling through raw clash lists. Reports should help participants understand the location, affected systems, severity, design options, and next action. The objective is not to eliminate every geometric intersection; it is to prevent unintentional conflicts from becoming construction disruption.

Questions that often arise during BIM coordination

Can architects prevent clashes without modeling every MEP component?

Yes, provided the architectural model reliably defines the spaces, boundaries, levels, openings, and clearance-sensitive elements that influence coordination. Engineering teams remain responsible for their systems, but architects need enough spatial information to assess whether the design intent can accommodate them. Early massing zones may be suitable at one stage; detailed ceilings, shafts, and access areas may be required later.

Should every detected clash be fixed?

No. Some intersections are intentional, such as a coordinated penetration through a wall or a connection between elements. Each result should be reviewed against the agreed rules. The important outcome is a documented decision: resolve it, accept it with a reason, defer it pending information, or exclude it because it falls outside the defined scope.

When should clash detection begin?

It should begin when more than one discipline has enough dependable geometry to test a meaningful spatial decision. Starting early with broad zones can reveal fundamental layout conflicts. The tests should then become more precise as the model develops, rather than waiting until all systems are fully detailed.
