CAN Bus Battery Management Systems: Key Signals That Affect Safety

In high-voltage energy systems, CAN Bus Battery Management Systems shape every major safety decision.

That starts with signal integrity, timing, and message reliability across the full battery architecture.

A battery pack may look stable at rest.

But under charge, discharge, vibration, or thermal stress, weak signals quickly become real hazards.

This is why CAN Bus Battery Management Systems matter far beyond basic communication.

They support fault detection, contactor control, balancing logic, derating, and emergency shutdown.

A credible technical review should focus on which signals drive those actions, how fast they update, and how failures are handled.

Why Signal Quality Defines Safety in CAN Bus Battery Management Systems

In modern packs, the BMS is only as trustworthy as the data moving across the network.

A missed message can delay thermal mitigation.

A corrupted frame can trigger false isolation or leave a genuine fault unmanaged.

That risk becomes higher in electric vehicles, stationary storage, construction equipment, and mixed-voltage industrial fleets.

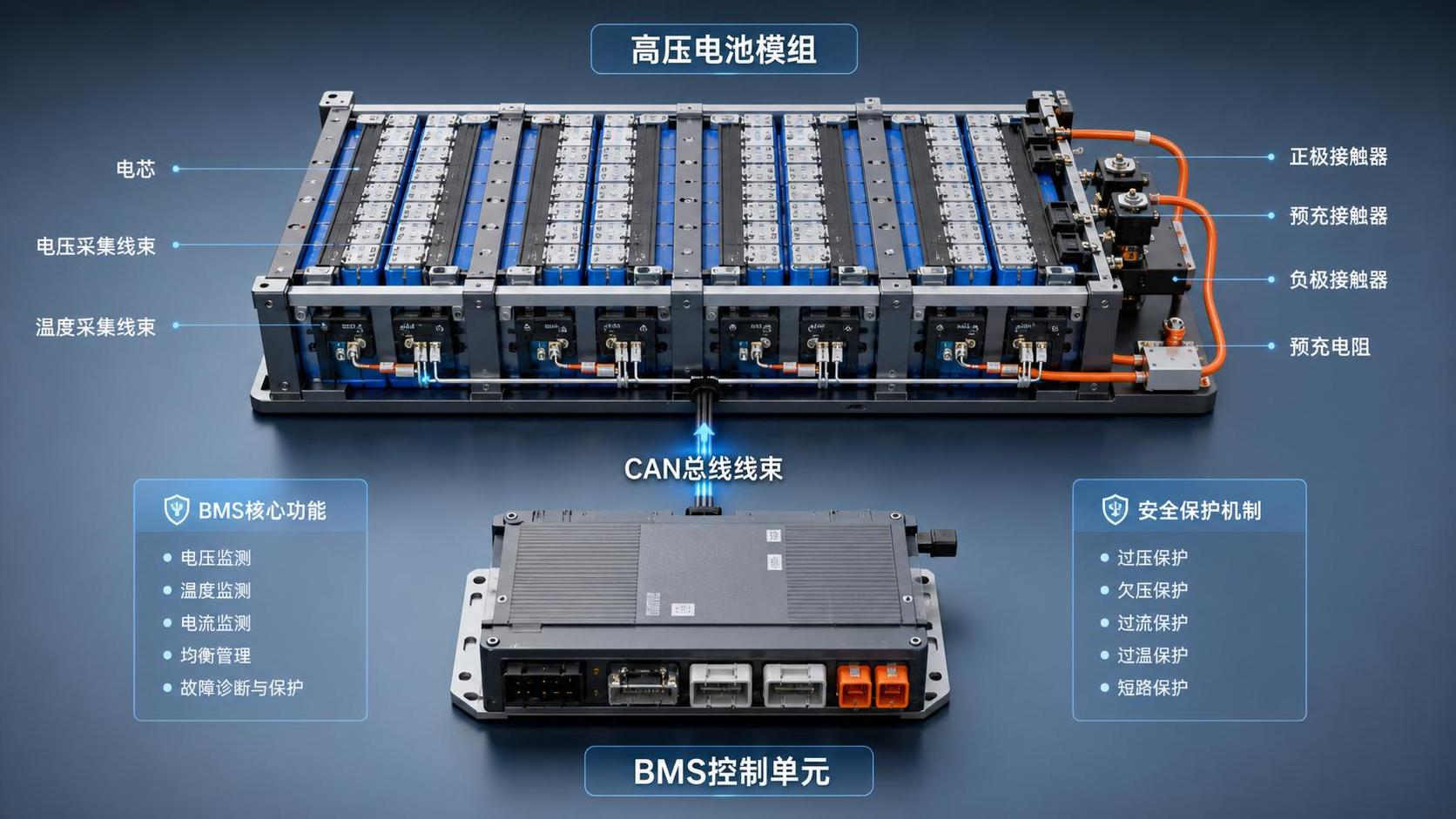

CAN Bus Battery Management Systems usually connect cell monitoring units, the master BMS, chargers, inverters, vehicle control units, and telematics gateways.

Each node depends on stable arbitration, error handling, and predictable latency.

From a safety standpoint, three questions matter early.

• Which signals directly trigger protection actions?
• What happens if those signals are delayed, stale, or implausible?
• How does the system move to a defined safe state?

These questions separate a functional network from a safety-ready one.

Core Signals That Should Be Examined First

Not every message on the bus carries the same safety weight.

In CAN Bus Battery Management Systems, several signals deserve immediate scrutiny.

Cell Voltage and Pack Voltage

Cell voltage is usually the first line of defense against overcharge and deep discharge.

Pack voltage validates aggregate behavior and supports contactor and charger decisions.

Look closely at measurement resolution, broadcast frequency, and plausibility checks between cell groups and total pack readings.

Cell Temperature and Module Temperature

Temperature signals influence current limits, cooling requests, and shutdown thresholds.

In practice, sensor placement matters as much as the message itself.

A CAN message may be timely, yet still mislead if hotspots are not represented.

Current Measurement

Current data supports short-circuit detection, state estimation, and charge acceptance control.

Small offset errors can distort state of charge over time.

Fast transient errors can hide abuse conditions during acceleration, fast charging, or regenerative events.

State of Charge, State of Health, and State of Power

These derived values are often shared widely across the system.

Yet they should never be treated as simple dashboard numbers.

In CAN Bus Battery Management Systems, they affect torque limits, charging windows, and maintenance strategy.

The key question is whether the estimation method remains stable during sensor drift and low-temperature operation.

Contactor Status and Precharge Signals

These signals govern connection and isolation of the high-voltage path.

If precharge timing, weld detection, or feedback confirmation is weak, downstream failures can escalate quickly.

How These Signals Influence Protective Functions

The value of CAN Bus Battery Management Systems lies in what the signals cause the system to do.

A safe design links each critical signal to a defined control action.

1. Overvoltage signals should reduce or stop charging before cell damage begins.
2. Undervoltage signals should limit discharge and protect weak cells from inversion risk.
3. Overtemperature signals should request cooling, reduce current, or open contactors when limits persist.
4. Overcurrent signals should act quickly enough to protect conductors, fuses, and semiconductor devices.
5. Isolation or insulation fault signals should move the system toward a predictable safe state.

This is where timing becomes decisive.

A correct threshold with slow message handling is still a safety weakness.

More importantly, protective logic should not depend on a single unverified message when the consequence is severe.

Communication Failure Modes That Deserve Attention

Many reviews focus on battery chemistry and overlook communication failure behavior.

That is a mistake.

CAN Bus Battery Management Systems can become unsafe even when sensors are accurate.

The problem may sit in the transport layer, bus loading, or node behavior.

• Message timeout: a critical value stops updating, but the receiver keeps using stale data.
• Bus-off state: a noisy node disconnects itself and removes important visibility.
• ID conflict: two devices use overlapping identifiers, creating ambiguous control outcomes.
• Excessive latency: high bus utilization delays protection messaging during peak events.
• Checksum or frame errors: repeated retries reduce determinism when fast action is needed.

A sound evaluation checks whether the BMS flags these conditions clearly and defines fallback behavior for each one.

Standards and Validation Signals to Review

For technical and standards-driven assessments, signal review should connect to compliance logic.

Different applications will map to different frameworks.

Still, the same review principles usually apply.

Relevant standards often include ISO 26262, ISO 11898, IEC 61508, UL 1973, IEC 62619, and UNECE R100, depending on the product category.

The point is not to list standards mechanically.

The point is to test whether CAN Bus Battery Management Systems behave safely when real conditions become messy.

A Practical Evaluation Checklist for Technical Reviews

A useful review process should move beyond brochure claims and generic network diagrams.

Use a checklist that ties message behavior to safety outcomes.

• Request the full CAN matrix, message cycle times, scaling, and timeout definitions.
• Identify every signal that can open contactors, limit current, or block charging.
• Check whether critical signals have redundancy, cross-checking, or plausibility monitoring.
• Review fault injection results for sensor loss, bus interruption, and node reset events.
• Confirm how balancing behaves when temperature spread or communication instability appears.
• Verify that logging captures signal history before and after a protection event.
• Assess whether firmware updates can alter signal behavior without breaking validation evidence.

In actual procurement or qualification work, this level of detail reduces late-stage surprises.

It also helps compare suppliers on something more meaningful than headline specifications.

What Strong CAN Bus Battery Management Systems Look Like

Strong CAN Bus Battery Management Systems do not rely on optimistic assumptions.

They assume sensors can drift, packets can be delayed, and operating conditions can change abruptly.

As a result, the best designs show clear signal ownership, disciplined timing, documented diagnostics, and unambiguous fallback actions.

That is the baseline for judging safety readiness.

When reviewing CAN Bus Battery Management Systems, focus on the signals that actually move the system toward protection, not just visibility.

That shift in attention usually reveals the real strengths, the hidden gaps, and the deployment risk faster than any marketing summary.

For any serious technical decision, start with the signal map, test the failure paths, and confirm the safe-state logic under realistic stress.
