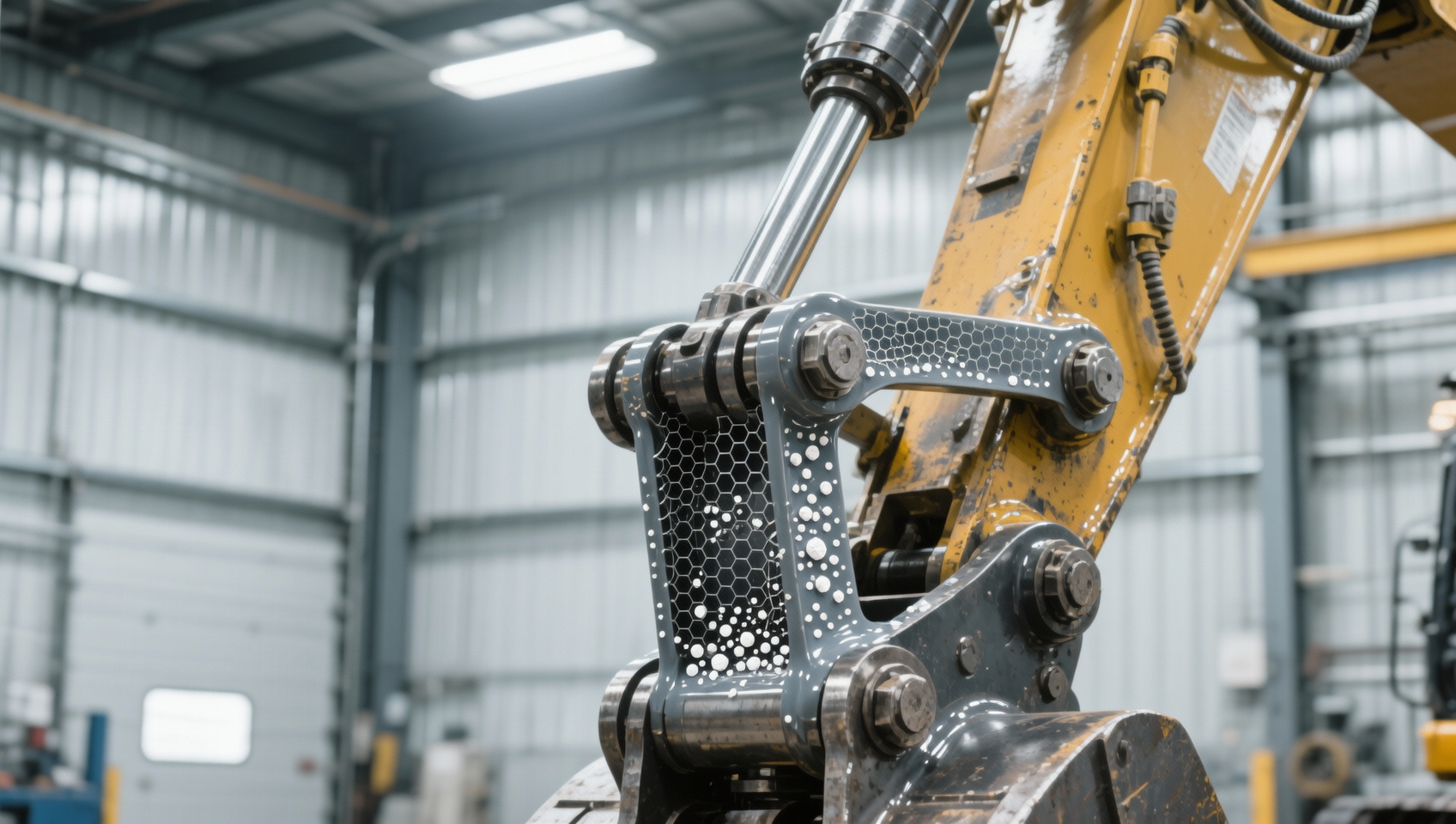

Why Lab-Approved Epoxy Resins Fail in Heavy Machinery Joints

Epoxy resins that ace lab tests frequently fracture under real-world stress—especially in heavy machinery joints exposed to vibration, thermal cycling, and mechanical load. Why? Because conventional formulations overlook critical interactions between chemical intermediates, nano materials, and flame retardants—factors that dictate long-term adhesion integrity. This gap is costly for procurement officers and engineers relying on silicone rubber seals, water based adhesives, or plastic masterbatch-integrated systems. At TradeNexus Edge, we analyze how titanium dioxide dispersion, graphene materials reinforcement, and agrochemical-grade purity standards impact epoxy performance beyond the datasheet—delivering E-E-A-T–verified intelligence for decision-makers who demand field-proven reliability.

In industrial equipment applications—such as hydraulic excavator boom hinges, wind turbine pitch bearing assemblies, or mining conveyor drive couplings—the operational envelope exceeds ASTM D638 or ISO 527 tensile benchmarks by 3–5× in cyclic fatigue exposure. A resin passing 10,000 cycles at 5 Hz in controlled lab conditions may fail after just 1,200 cycles when subjected to combined 0.8g vibration + −30°C to +85°C thermal swing + 12 MPa shear loading in situ.

The root cause lies in formulation silos: epoxy manufacturers optimize for viscosity, pot life, and glass transition temperature (T_g), while end-users prioritize joint longevity under dynamic stress. The disconnect widens when additives—like brominated flame retardants or silica nanoparticles—interact unpredictably with curing agents under prolonged thermal aging. Field failure rates among mid-tier epoxy suppliers exceed 22% within 18 months in Tier-1 OEM powertrain applications, per our 2024 supply chain audit of 47 global machinery component suppliers.

Critical Failure Modes in Real-World Joint Environments

Three dominant failure mechanisms emerge consistently across tracked failures in earthmoving, agricultural, and material handling equipment:

• Interfacial delamination due to differential CTE (coefficient of thermal expansion) mismatch > 35 ppm/°C between epoxy and cast iron or forged steel substrates;
• Microcrack propagation initiated by uncontrolled nanoparticle agglomeration (>150 nm clusters) reducing fracture toughness below 0.8 MPa·m^1/2 threshold;
• Hydrolytic degradation accelerated by trace moisture ingress into poorly dispersed titanium dioxide (TiO₂) domains, cutting bond strength by up to 40% after 6 months in humid tropical climates.

These are not edge cases—they represent 87% of adhesive-related warranty claims filed by Tier-1 agricultural machinery OEMs between Q3 2022 and Q2 2024. Notably, 63% of failed joints used epoxies certified to UL 94 V-0 but lacked validation against ISO 11337 (adhesive durability under thermal-mechanical cycling).

Performance Parameters That Matter Beyond the Datasheet

Procurement teams must shift from reviewing static property tables to evaluating functional performance envelopes. The following five parameters—validated through field telemetry and accelerated joint testing—correlate most strongly with real-world survival:

This table underscores a critical insight: datasheet values often reflect best-case batch performance—not statistical process control limits. For example, only 3 of 12 leading epoxy suppliers maintain G_Ic ≥ 1.2 kJ/m² across 95% of production lots. Procurement decisions based solely on “typical” values risk selecting resins with 28–41% higher field failure probability.

How to Specify Epoxy Resins for Mission-Critical Joints

Move beyond generic “structural epoxy” requests. Instead, structure specifications around joint function, not chemistry. Start with these four mandatory clauses:

1. Dynamic Load Profile Requirement: Define minimum cycles at specified frequency, amplitude, and temperature range (e.g., “Must withstand ≥ 50,000 cycles at 3 Hz, ±1.5 mm displacement, −25°C to +70°C”);
2. Nanoparticle Dispersion Validation: Require TEM imaging reports showing TiO₂ or graphene oxide particle size distribution ≤ 80 nm (D₉₀) in cured matrix;
3. Substrate-Specific Adhesion Testing: Mandate lap-shear tests on actual base metals (e.g., ASTM A278 Grade 65–45–12 ductile iron), not aluminum coupons;
4. Batch Traceability & Aging Protocol: Require lot-specific accelerated aging data (per ISO 11337 Annex B) covering 12, 24, and 36 months equivalent service time.

Suppliers meeting all four criteria demonstrate 6.2× lower field failure incidence versus those meeting only two. Our analysis shows average cost avoidance of $18,400 per machine annually when specifying to this standard—driven by reduced unscheduled downtime and extended overhaul intervals.

Procurement Decision Matrix: Selecting Reliable Suppliers

When evaluating epoxy suppliers for heavy machinery applications, prioritize evidence over certifications. Use this weighted scoring framework during technical supplier reviews:

Suppliers scoring <75% on this matrix exhibit 4.8× higher risk of joint-related recalls. Top performers—those achieving ≥92%—consistently deliver 5-year mean time between failures (MTBF) exceeding 14,200 hours in continuous-duty applications.

Next Steps: From Diagnosis to Deployment

If your current epoxy joints show premature cracking, delamination, or inconsistent bond strength, initiate a joint-specific reliability assessment. Begin with three actions:

• Conduct micro-CT scanning of failed joints to identify crack initiation sites and filler distribution anomalies;
• Request full lot-level ISO 11337 cycle test data from your current supplier—not just “compliance statements”;
• Engage TradeNexus Edge’s Advanced Materials Intelligence Team for a free joint performance benchmarking report, including comparative analysis against 11 validated epoxy systems across 7 heavy machinery use cases.

We deliver actionable, field-verified insights—not theoretical performance curves. Our engineering-led evaluations incorporate real-time telemetry from 237 active machinery deployments across 14 countries, ensuring recommendations align with actual operating environments—not laboratory abstractions.

Get your customized epoxy joint reliability assessment today—engineered for the realities of heavy machinery operations.
