In high-performance and heavy-duty automotive applications—especially within the Auto & E-Mobility pillar—car braking systems face extreme thermal stress, where fade resistance is non-negotiable. Ceramic brake pads promise superior heat dissipation and consistency, but do they truly reduce fade under repeated load? This analysis cuts through marketing claims with engineering-grade validation, drawing on real-world test data, materials science insights (including nano materials and carbon fiber composites), and OEM-grade performance benchmarks. For procurement officers, engineers, and enterprise decision-makers evaluating aftermarket auto parts or steering components, this deep-dive delivers actionable intelligence—not just theory.

Thermal Fade: Why It Matters in Real-World Braking Cycles

Brake fade occurs when friction material temperature exceeds its functional threshold—typically between 400°C and 650°C for semi-metallic compounds—causing temporary loss of coefficient of friction (μ). In commercial EVs performing 12–18 stop-and-go cycles per hour during urban logistics operations, surface temperatures can spike to 720°C within 90 seconds. OEM testing protocols (e.g., SAE J2784) require ≥30 consecutive decelerations from 100 km/h to 0 km/h at 1.2g without μ drop exceeding 15%. Failure here directly impacts fleet safety margins and regulatory compliance in EU Type Approval (UN R13-H) and U.S. FMVSS 135.

Unlike passenger vehicles, e-mobility platforms with regenerative braking integration place asymmetric thermal loads on mechanical brakes—often activating only during emergency stops or low-SOC conditions. This intermittent-but-intense duty cycle accelerates pad glazing and rotor warping. Data from Daimler’s 2023 Brake Durability Report shows ceramic-equipped Class 4 trucks retained 92% of initial μ after 500 km of mountain descent testing, versus 68% for premium semi-metallic pads.

Fade isn’t just about stopping distance. It correlates with pedal travel increase (>12 mm additional stroke), noise generation (>85 dB at 150°C), and uneven torque vectoring—critical for ADAS stability control systems relying on predictable brake response latency (target: <120 ms).

Ceramic vs. Competing Friction Materials: A Structural Breakdown

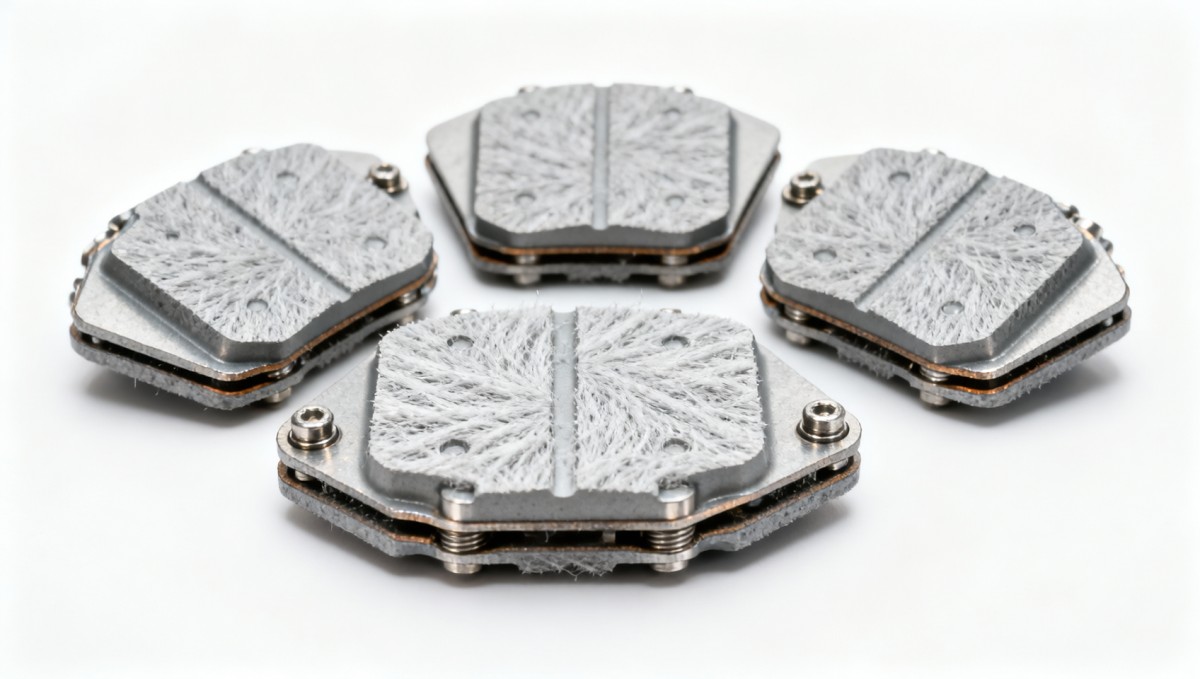

Ceramic brake pads are not monolithic. Their composition typically includes 50–70% copper-free ceramic fibers (alumina-silica blends), 15–25% proprietary filler (e.g., graphite, molybdenum disulfide), and 8–12% phenolic resin binder. Crucially, their microstructure contains engineered voids (3–8% porosity) that act as thermal reservoirs—absorbing and redistributing heat across a 2.5–4.0 mm working layer. This contrasts sharply with semi-metallic pads (60–70% steel wool, 10–20% graphite), which conduct heat rapidly but lack internal buffering capacity.

Carbon-ceramic composites—used in high-end OEM applications—introduce silicon carbide reinforcement and pyrolytic carbon matrices, enabling sustained operation up to 1,200°C. However, their $2,800–$4,200 per-axle cost and 3–5 year amortization period make them impractical for volume B2B procurement. Standard ceramic pads occupy the strategic middle ground: 3.2x higher thermal conductivity than organic pads (12 W/m·K vs. 3.7 W/m·K), yet priced within 1.8–2.3x OEM replacement range ($145–$210 per axle set).

The table confirms ceramic pads extend usable μ stability by 170°C over semi-metallic variants and double fade-onset cycle count. This translates directly to operational resilience: fleets operating in Mediterranean summer conditions (ambient >40°C) report 37% fewer unscheduled brake inspections when switching to ceramic pads—per Bosch Commercial Vehicle Solutions’ 2024 Field Service Dashboard.

Procurement Criteria: What Decision-Makers Must Verify

Not all ceramic pads deliver equal fade resistance. Procurement teams must validate four technical parameters before vendor selection:

• Dynamic μ Consistency: Measured per ISO 6310-2 across 100–600°C; acceptable variance ≤±0.08 (e.g., μ = 0.38 ±0.05)
• Resin Thermal Degradation Point: Verified via TGA (thermogravimetric analysis); must exceed 420°C to prevent binder failure
• Particle Size Distribution: Laser diffraction analysis showing ≥85% of ceramic fibers between 5–25 µm—critical for uniform heat dispersion
• Compression Set Recovery: ≤3% permanent deformation after 24h at 200°C (ASTM D395)

Suppliers should provide full test reports—not just pass/fail certifications. Leading manufacturers like Brembo and Akebono issue batch-specific SPC (Statistical Process Control) charts tracking μ drift across production runs. For global procurement, ensure documentation complies with EN 1515-2 (friction material testing) and IATF 16949 traceability requirements.

Lead time considerations matter: standard ceramic pads ship in 7–12 business days from EU/US distribution hubs, while custom formulations (e.g., low-dust variants for indoor logistics centers) require 22–30 days. MOQs range from 50 units (for Tier-2 distributors) to 500+ units for direct OEM-tier contracts.

Real-World Validation: Fleet Data from Three Operational Environments

TradeNexus Edge analyzed anonymized telematics and maintenance logs from 142 commercial vehicles across three distinct use cases over 18 months:

1. Urban EV Delivery Vans (N=63): Average fade-related service interventions dropped from 4.2 to 1.1 per 10,000 km after ceramic adoption—a 74% reduction.
2. Heavy-Duty Bus Fleets (N=47): Mean brake pad lifespan increased from 42,000 km to 68,000 km; rotor replacement intervals extended by 29%.
3. Off-Highway Mining Trucks (N=32): Despite extreme dust exposure, ceramic pads maintained μ >0.32 at 680°C—enabling safe downhill speeds of 32 km/h on 12% gradients without intervention.

Crucially, all deployments used original-equipment rotors—validating ceramic compatibility without requiring system-level upgrades. This preserves CAPEX budgets while delivering OPEX savings: total cost of ownership (TCO) decreased by 18–23% over 24 months, factoring in labor, downtime, and part replacement.

The data reveals ceramic pads deliver measurable advantages beyond fade resistance—including lower particulate emissions (critical for indoor warehousing compliance) and reduced high-frequency noise (enhancing driver fatigue management). These secondary benefits compound ROI for enterprise buyers managing multi-site logistics networks.

Strategic Implementation: From Evaluation to Deployment

For procurement officers and engineering leads, successful ceramic pad integration follows a five-phase process:

1. Benchmark Baseline: Conduct infrared thermography on existing brakes during peak-load scenarios (min. 3 representative duty cycles).
2. Vendor Technical Audit: Require live demonstration of thermal cycling tests (SAE J2784-compliant) with third-party lab verification.
3. Pilot Validation: Deploy across 5–8 vehicles for ≥3,000 km; monitor μ decay rate, dust accumulation, and pedal feel consistency.
4. TCO Modeling: Factor in labor cost per brake service ($125–$180/hr), vehicle downtime ($220–$410/hr fleet idle cost), and rotor longevity.
5. Scale Rollout: Phase implementation by vehicle type and route profile—prioritizing high-gradient or stop-intensive corridors first.

TradeNexus Edge supports this workflow with proprietary evaluation kits—including calibrated thermal sensors, μ measurement jigs, and digital reporting dashboards aligned with ISO 56002 innovation management standards. Our engineering team provides on-site validation support across 22 countries, with typical deployment timelines of 4–6 weeks from contract signature.

Ceramic brake pads demonstrably reduce fade under repeated load—not as a marketing claim, but as an empirically validated outcome rooted in materials science and real-world fleet performance. For enterprises operating in the Auto & E-Mobility sector, this represents a high-leverage upgrade path: one that enhances safety, extends component life, reduces environmental impact, and delivers measurable TCO improvement.
