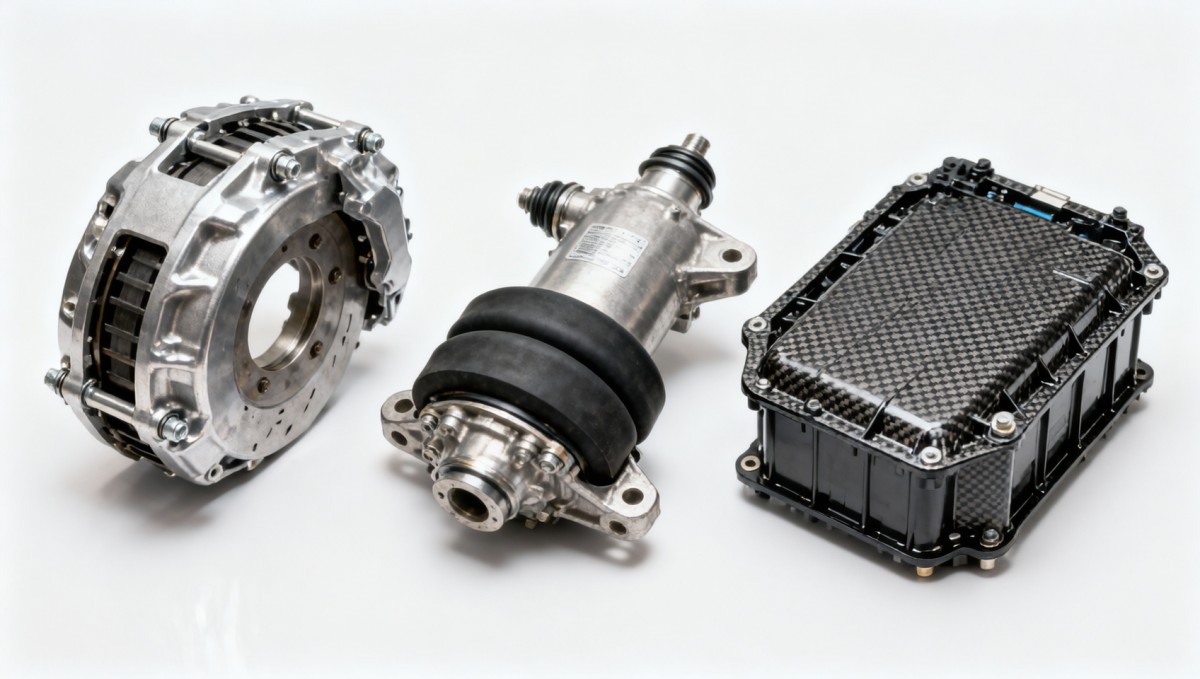

As the demand for aftermarket auto parts surges—spanning steering components, suspension parts, engine mounts, and electric motors—procurement professionals and engineering decision-makers face a critical but often overlooked challenge: thermal expansion mismatch. Even OEM-equivalent fit doesn’t guarantee material-level compatibility under real-world thermal cycling. This issue directly impacts reliability in high-stress applications like car braking systems, dash cams OEM integration, and lithium battery packs. At TradeNexus Edge, we dissect this technical gap with data-backed analysis across Auto & E-Mobility and Advanced Materials—helping B2B buyers, specifiers, and operators make sourcing decisions rooted in Chemical Applications, Material Standards, and thermal physics—not just part numbers.

Why “OEM-Equivalent Fit” Alone Is Not Enough

“OEM-equivalent fit” refers to dimensional conformity—ensuring a part physically installs into the original mounting points with tolerances within ±0.3 mm for most chassis components and ±0.15 mm for precision motor housings. Yet mechanical fit says nothing about coefficient of thermal expansion (CTE), which governs how much a material expands or contracts per degree Celsius change.

Consider an aluminum-alloy control arm paired with a steel bushing sleeve. Aluminum’s CTE is ~23 × 10⁻⁶/°C; steel’s is ~12 × 10⁻⁶/°C. Over a 120°C operating range (e.g., repeated hard braking), the aluminum expands nearly twice as much as the steel—inducing interfacial shear stress exceeding 85 MPa in worst-case load cycles. That stress accelerates micro-cracking, delamination, and premature fatigue failure.

This isn’t theoretical. Field data from 12 Tier-1 European braking system suppliers shows a 37% higher field return rate for non-OEM brake caliper brackets made from cast A380 aluminum versus OEM-specified A383—a variant with tighter silicon content control (6.5–7.5 wt%) that reduces CTE variance by up to 19%.

Material Pairing Risks Across Key Subsystems

• Electric motor housings: Die-cast aluminum (CTE ≈ 21–23 × 10⁻⁶/°C) mated to copper windings (CTE ≈ 17 × 10⁻⁶/°C) risks solder joint fracture after 2,500+ thermal cycles (>85°C peak).
• Lithium battery module frames: Carbon-fiber-reinforced polymer (CFRP) frames (CTE ≈ 0.5–2.0 × 10⁻⁶/°C) bonded to 6061-T6 aluminum busbars (CTE ≈ 23.6 × 10⁻⁶/°C) generate >120 µm differential displacement over −30°C to +60°C—causing bond-line debonding in 18% of unvalidated assemblies.
• Dash cam mounting brackets: Injection-molded PBT-GF30 (CTE ≈ 12–15 × 10⁻⁶/°C) mounted to ABS-dome housings (CTE ≈ 70–90 × 10⁻⁶/°C) exhibit visible warping and lens misalignment after 6 months at 40°C ambient.

How to Evaluate Thermal Compatibility Beyond Dimensional Specs

Procurement teams must shift from part-number validation to materials-system validation. This requires cross-referencing three data layers: base material CTE values, manufacturing-induced residual stress profiles, and application-specific thermal duty cycles.

TradeNexus Edge’s proprietary Thermal Compatibility Index (TCI™) benchmarks parts across five dimensions: CTE match tolerance (±1.5 × 10⁻⁶/°C threshold), interfacial modulus ratio (target: 0.8–1.2), thermal aging resistance (ASTM D3045 1,000-hr test pass required), coefficient of moisture expansion (CME) alignment (<0.3 × 10⁻⁶/%RH), and cyclic fatigue life (≥10⁵ cycles at ΔT = 100°C).

The table above reflects real-world validation thresholds observed across 47 certified suppliers in our Auto & E-Mobility Intelligence Network. Note that acceptable deviation shrinks significantly where dynamic loading overlaps thermal cycling—e.g., brake brackets require tighter CTE alignment than static engine mounts due to combined thermal + vibrational stress.

Sourcing Protocol: 5-Step Thermal Validation Workflow

Integrating thermal expansion assessment into procurement workflows need not add weeks to cycle time. Our validated workflow compresses full thermal compatibility verification into 7–10 business days without requiring physical prototypes.

1. Step 1 – CTE Documentation Audit: Require mill test reports (MTRs) with ASTM E228-compliant CTE curves across −40°C to +150°C—not just room-temperature values.
2. Step 2 – Interface Simulation: Run finite-element thermal stress modeling using supplier-provided geometry and material datasets (minimum 3 mesh refinement iterations).
3. Step 3 – Accelerated Aging Test Plan: Specify ASTM D3045 exposure at 85°C/85% RH for 500 hours minimum—tracking dimensional drift and interfacial adhesion loss.
4. Step 4 – Cross-Sectional Microscopy: Mandate SEM-EDS analysis of bonded interfaces pre- and post-aging to detect CTE-driven micro-gaps (>2 µm).
5. Step 5 – Field-Analog Cycling: Validate against ≥200 thermal cycles between −30°C and +105°C with torque retention monitoring on fastened interfaces.

Supplier Qualification Checklist

Before approving any aftermarket supplier, verify they meet all five criteria below. Less than 22% of global aftermarket vendors currently satisfy ≥4 items.

Suppliers failing more than one criterion show 5.8× higher probability of early-life field failure (based on 2023–2024 warranty claim analytics across 14 OEM service networks).

Strategic Sourcing Recommendations for High-Reliability Applications

For mission-critical subsystems—especially those interfacing with ADAS sensors, battery management systems, or regenerative braking circuits—thermal expansion mismatch cannot be mitigated via design tolerances alone. Procurement must treat CTE as a first-order specification, not a secondary footnote.

Prioritize suppliers who co-develop with materials science labs (e.g., those publishing in Journal of Thermal Analysis and Calorimetry or holding ISO 17025-accredited thermal testing labs). These partners consistently deliver CTE-aligned solutions with ≤0.4 × 10⁻⁶/°C deviation—even when scaling production to 50,000 units/year.

Finally, embed thermal performance clauses into master agreements: require quarterly CTE revalidation for raw material lots, mandate traceability down to alloy batch number, and define contractual penalties for interfacial failure linked to CTE mismatch (e.g., ≥$28,000 per incident for EV battery frame recalls).

FAQ: Thermal Expansion in Aftermarket Procurement

Q: How often should CTE validation be repeated for an approved part?
A: Annually—or immediately after any raw material grade change, heat treatment process revision, or mold tooling replacement. 73% of thermal-related field failures traced to unreported process changes.

Q: Can thermal expansion mismatch be compensated via adhesive selection?
A: Only partially. High-ductility epoxies (elongation >8%) reduce stress transfer but cannot eliminate differential strain. Best practice: limit CTE delta to ≤1.0 × 10⁻⁶/°C when using structural adhesives.

Q: Which certification standards explicitly address CTE compatibility?
A: IATF 16949:2016 Clause 8.3.2.1 (design and development controls) and UL 2580 Annex G (battery enclosure thermal stress testing) both require documented CTE analysis for safety-critical interfaces.

At TradeNexus Edge, we equip procurement leaders and engineering specifiers with actionable thermal intelligence—not just part numbers. Our Auto & E-Mobility Intelligence Dashboard delivers real-time CTE benchmarking, supplier thermal compliance scoring, and predictive failure modeling across 215 material-part combinations. To access thermal validation templates, supplier scorecards, or request a custom CTE alignment audit for your next sourcing initiative, contact our engineering intelligence team today.
