Integrated EV Powertrain: Key Design Trade-Offs That Affect Range and Cost

For technical evaluators, selecting an integrated EV powertrain is rarely about one headline metric.

Range matters, but so do thermal limits, software behavior, serviceability, and total manufacturing cost.

That is why integrated EV powertrain decisions often become architecture decisions.

A compact, highly integrated system can cut weight, reduce harness length, and simplify assembly.

At the same time, tighter integration can increase thermal coupling, raise replacement cost, and narrow sourcing flexibility.

The practical question is not whether integration is good.

The better question is which level of integration fits the target vehicle, duty cycle, and cost structure.

What an integrated EV powertrain really includes

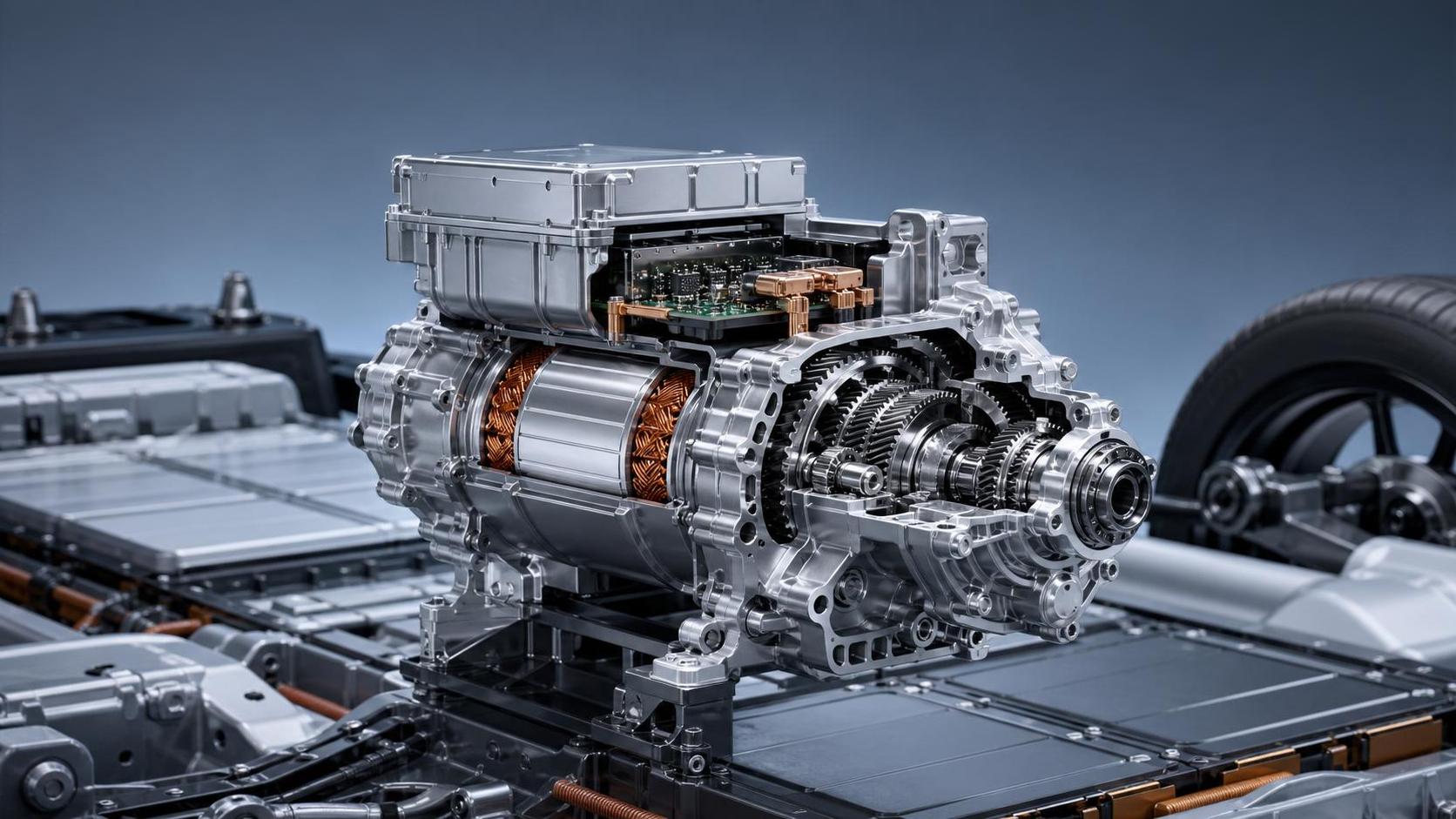

In most programs, the integrated EV powertrain combines the traction motor, inverter, gearbox, and control electronics.

Some designs also absorb the DC-DC converter, onboard charger, or power distribution functions.

The goal is straightforward.

Use fewer housings, fewer connectors, fewer brackets, and less cabling.

From a system view, this can improve volumetric efficiency and lower parasitic losses.

It can also shorten signal paths and support faster torque response.

Still, the meaning of integration varies widely across suppliers.

That makes architecture comparison difficult unless the interface boundaries are clearly defined.

Efficiency gains versus thermal concentration

Efficiency is often the first promise attached to an integrated EV powertrain.

That promise is real, but it comes with conditions.

A tighter package can reduce conductive losses in busbars and interconnects.

It can also support optimized motor-inverter calibration over the full drive cycle.

However, those gains may be offset if heat rejection becomes harder.

Motor copper losses, inverter switching losses, and gearbox friction all generate heat in close proximity.

When those heat sources share coolant paths or enclosure zones, peak temperature management becomes more demanding.

This matters because elevated temperature can erode magnet performance, semiconductor life, lubricant durability, and insulation margin.

In practical evaluation, look beyond peak efficiency maps.

Ask for sustained output data, derating curves, coolant inlet assumptions, and repeatability under hot ambient conditions.

Key thermal questions to test

• Are the motor, inverter, and reducer on shared or separated thermal loops?
• What happens to continuous torque after repeated acceleration events?
• How sensitive is the integrated EV powertrain to coolant fouling or pump degradation?
• Can the system maintain efficiency after long highway or grade-climb operation?

Packaging benefits versus repair complexity

Packaging is one of the strongest arguments for an integrated EV powertrain.

A smaller powertrain opens room for larger battery packs, better crash structures, or cabin space.

That can directly support range targets without changing cell chemistry.

The trade-off appears later in the product lifecycle.

When multiple high-value components sit inside one housing, service events become more expensive.

A fault in one subassembly may require replacing a larger module than strictly necessary.

This also affects remanufacturing, field diagnostics, and spare part strategy.

From a sourcing standpoint, integrated EV powertrain designs can reduce multi-supplier coordination.

Yet they can also increase dependency on one supplier’s design stack, tooling, and validation methods.

That concentration risk is easy to overlook during early cost comparisons.

Software integration can unlock range, or hide losses

The performance of an integrated EV powertrain is no longer defined only by hardware.

Software now determines a large share of usable efficiency and drivability.

Integrated control can improve torque blending, regenerative braking stability, and inverter switching strategy.

Done well, this lifts real-world range more than a small hardware improvement would.

But software integration also creates evaluation blind spots.

Some systems look efficient in narrow test windows, then lose ground in mixed-temperature or transient conditions.

The reason is often control logic rather than component quality.

Calibration maturity matters just as much as silicon selection.

This is where technical review should include software update policy, fault fallback behavior, and cybersecurity readiness.

An integrated EV powertrain with strong hardware but weak controls can undermine both range and warranty performance.

Software checkpoints that deserve attention

• Regeneration consistency across SOC, temperature, and road friction conditions.
• Torque smoothing during launch, coastdown, and traction events.
• Functional safety alignment with ISO 26262 processes.
• Cybersecurity lifecycle support aligned with UNECE and ISO expectations.

Material choice and power electronics shape the cost curve

Range and cost are closely tied to materials and semiconductor decisions.

A premium integrated EV powertrain may use SiC inverters, high-grade laminations, and low-loss bearings.

Those choices can improve switching efficiency, reduce cooling load, and support high-voltage operation.

They also raise component cost and expose the program to tighter supply conditions.

By contrast, a lower-cost architecture may rely on silicon IGBT devices and less aggressive magnetic materials.

That can make sense for urban vehicles with modest continuous power demand.

Another decision point is motor topology.

Permanent magnet systems often deliver strong power density and efficiency.

Induction or externally excited designs may ease rare-earth exposure but shift the efficiency profile.

The right answer depends on duty cycle, commodity risk, and regional sourcing strategy.

Manufacturing scale changes the economics

An integrated EV powertrain may look expensive at prototype volume and attractive at scale.

That is because integration compresses assembly steps, wiring operations, and part handling.

It can also improve dimensional repeatability once production stabilizes.

Still, the upfront burden is not small.

Integrated housings, shared cooling passages, and combined end-of-line testing require disciplined process control.

Scrap events can become more expensive because more value is locked into one module.

This also means manufacturing readiness should be reviewed with the same rigor as design readiness.

In actual procurement work, low quoted BOM cost can hide expensive yield ramp issues.

Useful cost review dimensions

• Quoted component cost at launch and at target annual volume.
• Expected scrap and rework rate during ramp-up.
• Warranty reserve assumptions for electronics and seals.
• Availability of second-source materials and test equipment.

How to compare integrated EV powertrain options with more confidence

A useful evaluation framework keeps range, cost, and durability in the same conversation.

That sounds obvious, but many reviews still overweight one laboratory metric.

A stronger method is to compare each integrated EV powertrain against the intended operating profile.

1. Define the real duty cycle, including ambient range, load, speed bands, and regeneration frequency.
2. Review continuous performance, not only peak output and short-cycle efficiency maps.
3. Stress the thermal model with degraded coolant, dirty exchangers, and repeated transient events.
4. Examine software maturity, diagnostic depth, and update governance.
5. Model service cost, module replacement logic, and supplier concentration risk.
6. Check manufacturability and supply resilience before accepting cost-down assumptions.

From recent market shifts, the clearer signal is this.

The best integrated EV powertrain is not always the most compact or the most advanced on paper.

It is the one that holds efficiency under real load, scales cleanly in production, and avoids hidden lifecycle penalties.

When those trade-offs are made visible early, range forecasts become more credible and cost targets become more realistic.

That is the basis for a better integrated EV powertrain decision, and a more durable product strategy overall.
