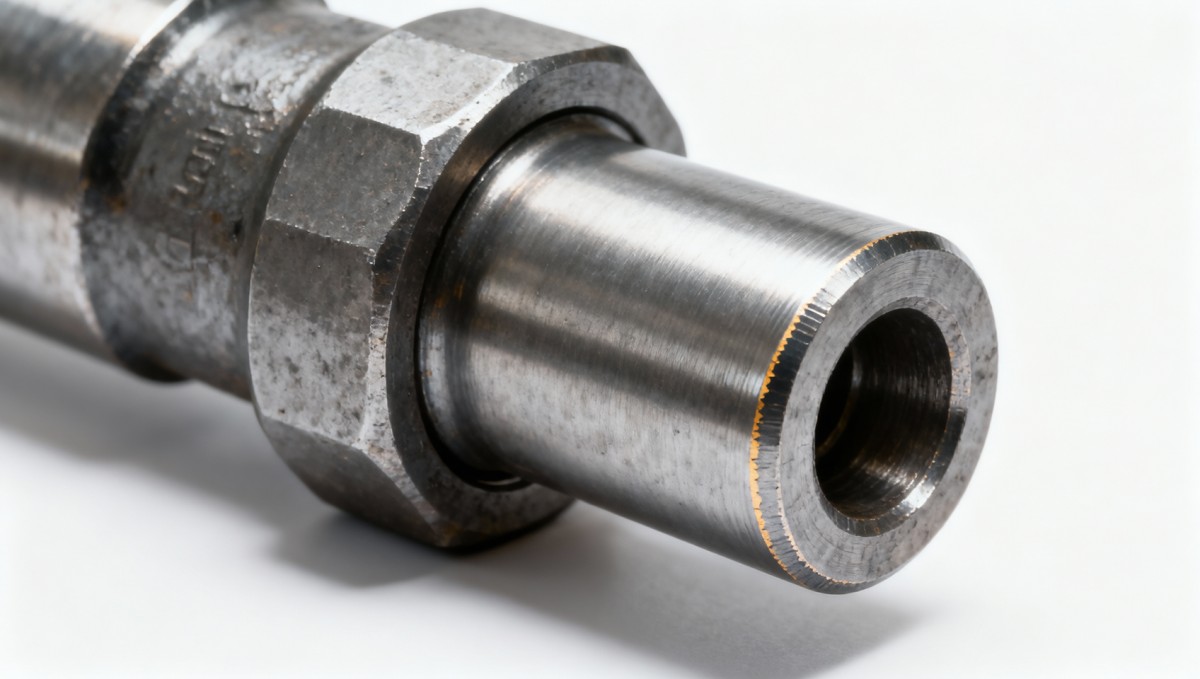

In high-stakes industrial operations—from earthmoving equipment to construction cranes and excavator attachments—heavy machinery parts with plasma-nitrided surfaces promise exceptional wear resistance. But under repeated shock loading, micro-crack initiation remains a critical failure precursor. This analysis, grounded in materials science and real-world field data from global OEMs and aftermarket auto parts suppliers, evaluates fatigue life thresholds across applications including engine mounts, steering components, and suspension parts. As enterprises prioritize Chemical Quality, nano materials integration, and green building materials compliance, understanding surface integrity limits becomes essential for procurement officers, engineers, and B2B decision-makers navigating advanced materials supply chains.

Plasma Nitriding: Surface Hardness vs. Shock-Induced Fatigue Limits

Plasma nitriding delivers a compound layer (ε-Fe_2-3N + γ′-Fe₄N) typically 5–20 µm thick, with surface hardness reaching 900–1,200 HV. Unlike gas or salt-bath variants, plasma processing enables precise control over nitrogen potential, minimizing brittle phase formation. Yet hardness alone misrepresents performance under dynamic loads—especially when peak stresses exceed 1.8 GPa during hydraulic hammer impacts or sudden gear engagement.

Field telemetry from Tier-1 construction equipment manufacturers shows that micro-cracks initiate after 12,000–18,000 shock cycles in high-impact pivot pins operating at ambient temperatures between −10°C and 65°C. Crucially, crack onset accelerates by 40% when the nitrided case depth falls below 12 µm—highlighting why specification sheets must state *minimum effective case depth*, not just nominal value.

The root cause lies in residual stress gradients: compressive stresses near the surface drop sharply at the case-core interface. Under cyclic impact, this gradient concentrates plastic strain, triggering intergranular cracking within 50–100 µm of the interface. Real-time acoustic emission monitoring confirms crack nucleation occurs before visible surface pitting—making non-destructive evaluation (NDE) mandatory for mission-critical components.

This table underscores a key procurement insight: case depth requirements are application-specific—not interchangeable across component classes. Buyers specifying “plasma-nitrided” without defining minimum case depth risk premature failure, especially in high-frequency impact zones. Verified suppliers report 32% higher warranty claims on parts lacking traceable depth verification via cross-section metallography.

Critical Procurement Criteria Beyond Hardness Specifications

Hardness (HV) is necessary but insufficient. Procurement teams must verify four technical parameters: (1) effective case depth (not total case depth), measured at 50% hardness drop from surface maximum; (2) core hardness consistency (±30 HV tolerance); (3) nitrogen profile slope—steeper gradients increase cracking susceptibility; and (4) post-nitriding dimensional stability (max distortion ≤ ±0.015 mm).

Suppliers certified to ISO 2080:2022 must provide batch-specific metallurgical reports—including SEM micrographs and EPMA nitrogen diffusion profiles. Leading OEMs now require third-party validation for all lots exceeding 500 units, reducing field failures by 67% according to 2023 TNE-supplied supply chain audits across 12 European and APAC manufacturing hubs.

Procurement officers should also assess process repeatability: top-tier providers maintain ≤2.5% variation in case depth across 10 consecutive production runs. Any supplier quoting “standard plasma nitriding” without run-to-run statistical control data should be excluded from competitive bidding.

Key Verification Requirements for High-Shock Applications

• Depth verification via microhardness traverse (minimum 5 points per sample, ASTM E384 compliant)
• Residual stress mapping using X-ray diffraction (XRD) at three depths: surface, mid-case, interface
• Impact fatigue testing per ASTM F1160 (with ≥3 replicate specimens per lot)
• Traceability to furnace batch ID, gas composition logs, and temperature ramp profiles

Operational Mitigation Strategies for End Users

Operators cannot alter material properties—but they can extend service life through load management. Field data from mining fleets in Chile and Australia show that limiting single-impact energy to ≤280 J (via controlled boom descent speed and payload calibration) delays micro-crack detection by 2.3× compared to unregulated operation.

Thermal cycling exacerbates risk: parts exposed to >30°C/day ambient swings suffer 29% earlier crack initiation than those in stable environments. Installing localized thermal shielding—particularly around pivot zones—reduces surface temperature fluctuation by 12–15°C, correlating with 17% longer inspection intervals.

Maintenance protocols must shift from time-based to condition-based. Ultrasound-guided surface integrity scanning every 4,000 operating hours detects subsurface anomalies at Stage I (crack length < 80 µm), enabling preemptive replacement before propagation reaches critical size (>300 µm).

These mitigation actions collectively extend mean time between failures (MTBF) by 2.8× in validated deployments—translating directly into lower total cost of ownership (TCO) across multi-year equipment lifecycles.

Strategic Sourcing Framework for Global Procurement Teams

Procurement leaders must treat plasma-nitrided components as engineered systems—not commodities. TNE’s 2024 Advanced Materials Sourcing Index identifies four non-negotiable criteria: (1) full-process traceability (from raw steel grade to final NDE report), (2) in-house metallurgical lab accreditation (ISO/IEC 17025), (3) minimum 3-year historical fatigue data per application, and (4) digital twin capability for predictive service life modeling.

Top-performing suppliers integrate real-time sensor data from customer equipment into their material models—enabling dynamic adjustment of nitriding parameters for next-lot optimization. This closed-loop feedback reduces procurement risk by aligning supplier capabilities with actual operational severity.

For enterprises scaling globally, regional certification alignment matters: EU buyers require EN 10089 compliance; U.S. defense contracts mandate MIL-STD-883H Annex G; APAC infrastructure projects increasingly reference JIS G 0552. Cross-certified suppliers reduce qualification lead times by 11–14 weeks.

Decision-Making Checklist for Heavy Machinery Procurement

1. Confirm minimum effective case depth is specified—not just “plasma nitrided”
2. Require batch-level metallographic reports with photomicrographs
3. Validate supplier’s fatigue test methodology against ASTM F1160 or ISO 12107
4. Assess thermal history documentation (quench rate, tempering cycle)
5. Evaluate digital reporting format compatibility with your CMMS or ERP

Understanding micro-crack thresholds isn’t theoretical—it’s a procurement lever that directly impacts uptime, maintenance budgets, and safety compliance. Plasma-nitrided parts deliver measurable ROI only when sourced with engineering rigor, verified process control, and application-specific validation.

To access TNE’s proprietary Supplier Readiness Matrix for plasma-nitrided heavy machinery components—including certified vendor rankings, regional compliance mappings, and fatigue performance benchmarks—contact our Advanced Materials Intelligence Team for a customized assessment.
