Polyurethane Resins for Insulation: Fire, R-Value, and Compliance

For project teams under pressure, polyurethane resins for insulation often sit at the center of three competing goals: thermal efficiency, fire safety, and code compliance.

That balance is not always straightforward. A resin system that performs well thermally may still create challenges during fire testing, certification, or long-term specification reviews.

This is why material selection cannot stop at product datasheets. Teams need to understand how formulation choices affect installed performance, regulatory fit, and procurement risk over the life of a project.

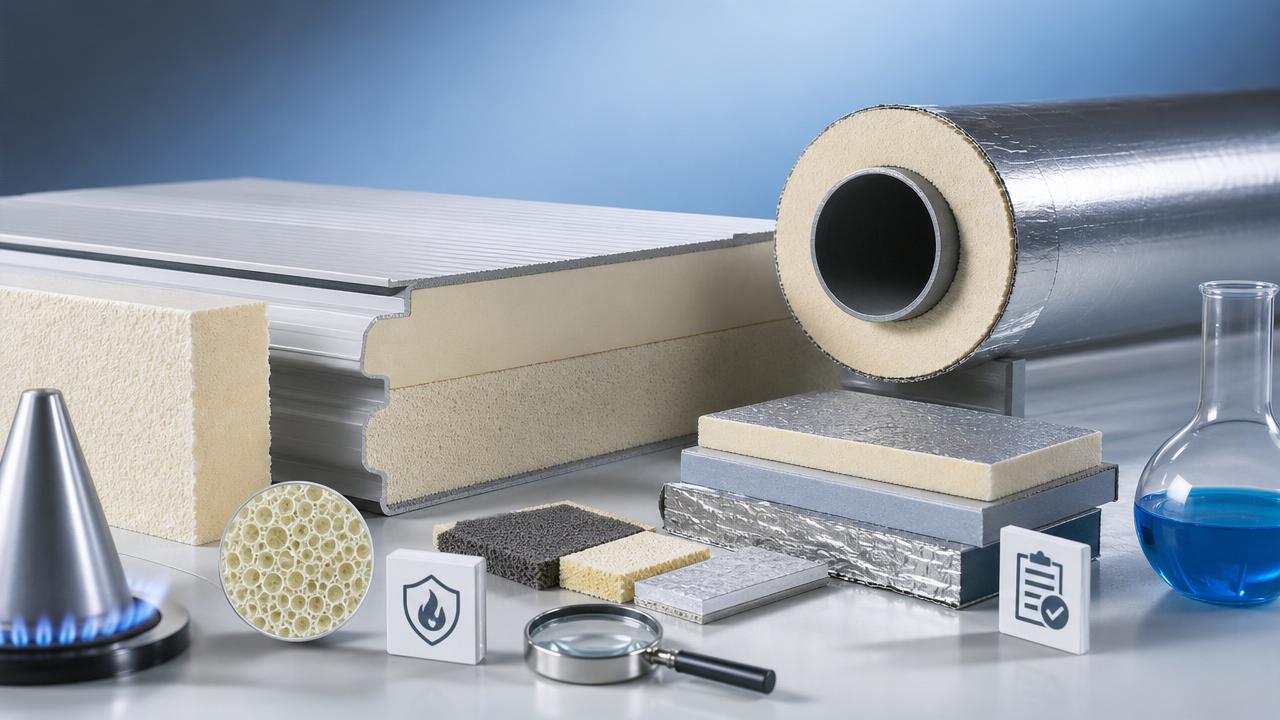

In practical terms, polyurethane resins for insulation are used in rigid foam boards, spray foam systems, sandwich panels, pipe insulation, and appliance insulation.

Across these uses, the resin is not just a binder. It shapes cell structure, density, dimensional stability, moisture resistance, and behavior under heat exposure.

Why Polyurethane Resins for Insulation Matter in Modern Projects

In many building envelopes, every millimeter counts. That is one reason polyurethane resins for insulation remain attractive where high thermal resistance is needed in limited space.

Compared with some conventional insulation materials, polyurethane-based systems can deliver higher R-value per inch. That helps preserve interior area and supports thinner wall or roof assemblies.

From a project delivery perspective, this also affects structural coordination, façade detailing, HVAC loads, and lifecycle energy targets. The resin choice influences more than one trade package.

Another reason is manufacturing flexibility. Polyurethane resins for insulation can be tuned for spray application, boardstock production, or composite panel lamination.

That flexibility is useful when projects span cold storage, industrial plants, commercial roofs, data centers, or transport infrastructure with different operating demands.

How Resin Formulation Affects R-Value

R-value is often the headline metric, but it is not created by one variable alone. In polyurethane resins for insulation, several formulation factors work together.

Key variables behind thermal performance

• Polyol chemistry influences foam rigidity, crosslink density, and long-term dimensional stability.
• Isocyanate index affects reaction balance, mechanical strength, and cell formation.
• Blowing agents shape closed-cell content and initial thermal conductivity.
• Catalysts and surfactants control cell uniformity and processing consistency.
• Density impacts compressive strength, weight, and thermal efficiency trade-offs.

Closed-cell structure is especially important. When polyurethane resins for insulation create small, stable cells, heat transfer slows down more effectively.

Still, initial R-value should not be the only decision point. A better question is how well the material retains thermal performance after aging, moisture exposure, and temperature cycling.

This is where test methods and declared aging performance become critical. Teams should look at long-term thermal resistance, not just fresh laboratory results.

What to check in supplier data

• Declared R-value or lambda value with test standard listed.
• Aged thermal performance, not only initial performance.
• Service temperature range for the intended application.
• Moisture absorption and dimensional stability results.
• Batch consistency and process tolerances for large supply programs.

Fire Performance: What the Resin Really Changes

Fire performance is where many specifications become more complex. Polyurethane resins for insulation are organic materials, so flame behavior must be carefully managed.

A common mistake is treating “fire-retardant” as a simple yes-or-no label. In reality, fire response depends on the full formulation, the facing material, the assembly design, and installation conditions.

The resin system influences ignition tendency, flame spread, smoke generation, heat release, and char formation. Those factors all matter in real compliance pathways.

Main fire-related formulation levers

• Reactive flame retardants integrated into the polymer network.
• Additive flame retardants blended into the foam system.
• Char-promoting chemistries that slow heat penetration.
• Facers or coverings that improve surface fire behavior.
• Foam density and cell structure, which influence burn characteristics.

From recent market shifts, a clearer signal is the move toward halogen-free or lower-emission solutions. That reflects both regulatory pressure and customer preference.

However, lower environmental impact does not automatically guarantee equal fire performance. Any change in polyurethane resins for insulation should be validated at the system level.

That also means comparing fire test reports carefully. Two materials may look similar in brochures, yet behave very differently inside a wall, roof, or panel assembly.

Compliance Is About Systems, Not Just Materials

This is one of the most important points for specification reviews. Compliance rarely depends on the resin alone.

For polyurethane resins for insulation, approvals often rely on product form, substrate, facer, fixing method, cavity design, protective layers, and end-use conditions.

In one region, a product may pass based on ASTM methods. In another, EN or ISO-related classifications may drive acceptance.

That is why teams managing international sourcing should verify exact alignment between project jurisdiction and supplier certification packages.

Standards often reviewed during selection

• ASTM C518 for thermal transmission testing.
• ASTM E84 for surface burning characteristics.
• ASTM E119 or related assembly fire resistance tests.
• EN 13501 classification frameworks for construction products.
• Local building codes, façade rules, and insurance requirements.

The practical takeaway is simple. Ask whether the certification applies to the exact product configuration you plan to buy and install.

If not, the risk moves from the supplier to the project team. That can delay approvals, trigger redesigns, or complicate handover documentation.

Procurement Questions That Reduce Project Risk

In real projects, the best decisions often come from disciplined questioning before procurement starts. Polyurethane resins for insulation should be reviewed with both technical and commercial filters.

1. What is the declared aged thermal performance under the required test standard?
2. Which fire tests apply to the actual installed assembly?
3. Are approvals valid in the project jurisdiction?
4. How stable is supply for resin inputs and flame-retardant additives?
5. What quality controls protect consistency across production lots?
6. How does the insulation perform under moisture, compression, and thermal cycling?

These questions help teams move beyond marketing claims. They also make supplier comparisons more objective, especially when several bids appear technically close.

More importantly, they expose hidden cost drivers. A lower unit price can become expensive if documentation gaps or failed mock-up tests force rework later.

A Practical Selection Framework

A useful way to evaluate polyurethane resins for insulation is to rank options across four decision lenses: thermal value, fire behavior, compliance fit, and supply reliability.

This kind of framework keeps teams focused on project outcomes, not isolated data points. It also creates a clearer record for internal approvals and stakeholder alignment.

Final Takeaway

Polyurethane resins for insulation remain a strong choice when space efficiency, thermal performance, and application flexibility are priorities. But the right choice depends on more than headline R-value.

The smarter path is to review resin chemistry, fire behavior, and compliance evidence as one connected decision. That approach reduces technical surprises and protects delivery timelines.

When evaluating polyurethane resins for insulation, ask for assembly-specific fire data, aged thermal results, and jurisdiction-matched approvals before locking specification or purchase terms.

That extra discipline early on usually pays back through smoother reviews, cleaner procurement, and more reliable building performance over time.
