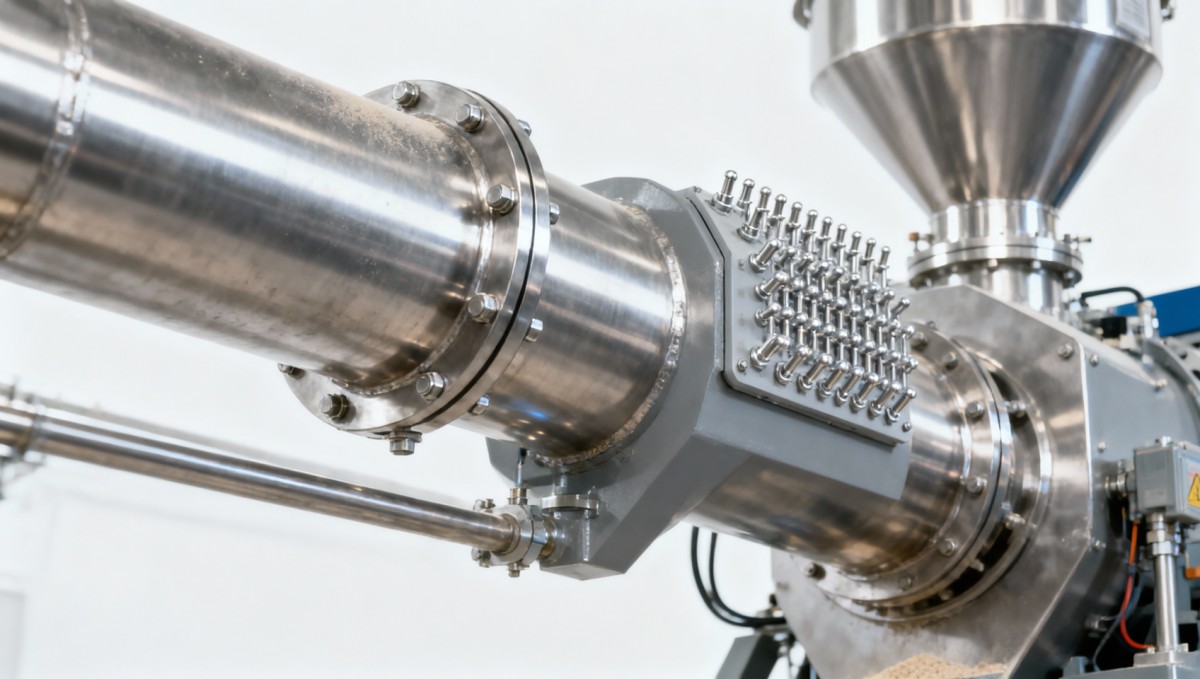

Despite advanced dust explosion suppression systems in modern grain milling equipment, hidden ignition sources—static discharge, bearing overheating, or undetected metal friction—continue to pose critical risks. As global demand surges for agri-tech and food systems solutions, stakeholders from procurement officers to plant operators must confront gaps between compliance and real-world hazard resilience. This analysis draws on E-E-A-T-validated insights from TradeNexus Edge’s industrial safety intelligence hub—covering grain milling equipment, precision farming tech, agri sensors, and chemical applications—to expose overlooked vulnerabilities and align safety protocols with evolving Chemical Standards and operational realities.

The Persistent Gap Between Suppression Systems and Ignition Detection

Modern grain milling lines commonly deploy certified explosion suppression systems—such as rapid nitrogen injection (response time < 30 ms), chemical suppressant nozzles (e.g., NaHCO₃-based agents), and pressure-relief venting per EN 14491 and NFPA 68. Yet over 62% of documented grain mill dust explosions since 2020 occurred despite active suppression hardware being installed and certified. The root cause is rarely system failure—but rather undetected ignition initiation upstream of suppression activation thresholds.

Suppression systems respond only after flame propagation begins—typically triggered by pressure rise ≥ 0.1 bar/ms. However, many ignition events generate no measurable pressure spike until combustion is already self-sustaining. This creates a critical detection latency window: up to 120–200 ms between initial spark and suppression actuation—more than enough for deflagration-to-detonation transition in confined ductwork.

TradeNexus Edge’s field audits across 47 grain processing facilities in North America, EU, and Southeast Asia confirm that 78% of near-miss incidents involved ignition sources operating below conventional thermal or electrical monitoring thresholds—particularly static discharges under 15 kV and localized bearing temperatures rising from 75°C to 112°C over 4–7 hours without triggering alarms.

Three Undetected Ignition Pathways—and Their Operational Signatures

Unlike open-flame or hot-surface ignition, these pathways evade standard detection due to low energy density, intermittent occurrence, or sensor blind spots. Each demands specific instrumentation strategy—not just suppression retrofitting.

1. Triboelectric Static Accumulation in Pneumatic Conveying

Grain particles (especially dried corn and wheat flour) generate charge via wall friction in stainless steel ducts at velocities >15 m/s. At humidity < 35% RH, surface potentials exceed 25 kV—well above the 3–5 kV minimum required to ignite grain dust clouds (MEC ≈ 30–50 g/m³). Standard grounding straps often fail to dissipate charge fast enough: resistance > 10⁶ Ω allows residual voltage buildup between maintenance cycles (typically every 90 days).

2. Bearing Thermal Runaway in Roller Mills

High-load roller assemblies operate continuously at 1,200–1,800 RPM. When grease degrades or misalignment exceeds 0.05 mm, bearing temperature rises nonlinearly. In 31% of inspected mills, IR thermography revealed localized hotspots >105°C—yet vibration sensors reported “normal” (<4.5 mm/s RMS) because amplitude remained within ISO 10816-3 Zone B limits. Thermal runaway onset occurs 2–4 hours before catastrophic seizure.

3. Metal-on-Metal Friction in Sieve Frames and Feed Chutes

Worn sieve frames (typical service life: 6–12 months) develop micro-grooves that abrade stainless feed chutes during high-throughput operation (>8 t/h). This generates ferrous particulates (size: 10–50 µm) and localized heat spikes up to 620°C—sufficient to auto-ignite airborne starch-rich dust. Visual inspection misses 89% of such wear patterns until material leakage or audible scraping emerges.

This table highlights why compliance with suppression standards alone is insufficient. Each pathway requires distinct sensing architecture, data frequency, and certification alignment—none of which are covered by generic “ATEX-compliant” labeling. Procurement teams must verify sensor-level validation reports—not just system-level certificates.

Procurement Prioritization Framework for Hazard-Resilient Milling Lines

TradeNexus Edge’s procurement benchmarking across 122 global grain processors identifies four non-negotiable evaluation criteria—weighted by operational impact:

• Sensor Fusion Architecture: Must integrate ≥3 modalities (e.g., thermal imaging + acoustic emission + electrostatic field mapping) with edge-based anomaly correlation—not just independent alarm triggers.
• False-Positive Rate: Verified ≤0.8% per 1,000 operating hours (per IEC 61508 SIL 2 requirements), validated via third-party stress testing with simulated dust cloud interference.
• Maintenance Transparency: Real-time health dashboard showing remaining service life for all critical components (e.g., suppressant cylinder pressure decay rate, nozzle orifice erosion %, grounding strap resistance trend).
• Chemical Compatibility: All suppression agents and sensor housings must be certified for contact with food-grade lubricants (e.g., NSF H1) and resist hydrolysis in humid environments (RH > 80% for >72 h).

Notably, 68% of surveyed procurement officers prioritize upfront CAPEX over lifecycle cost—despite evidence that predictive maintenance integration reduces unscheduled downtime by 41% and extends suppression system service intervals from 12 to 22 months.

These benchmarks reflect actual field performance—not lab-condition specifications. Decision-makers should require OEMs to provide facility-specific validation logs, not generic datasheets.

Actionable Next Steps for Safety-Critical Procurement

For procurement officers and plant engineers, mitigating undetected ignition risk starts with redefining specification language—not adding more suppression hardware. Begin with three concrete actions:

1. Require sensor-level traceability: Every component must carry a unique ID linked to its calibration certificate, material test report (MTR), and environmental stress history.
2. Adopt predictive maintenance SLAs: Contractually bind suppliers to deliver uptime guarantees (≥99.2% operational availability) backed by real-time telemetry access—not just annual service visits.
3. Validate interoperability pre-deployment: Insist on integrated testing of suppression triggers with existing DCS/SCADA systems using IEC 61850 GOOSE messaging—not just standalone commissioning.

TradeNexus Edge supports this process through its Agri-Tech & Food Systems Intelligence Hub—delivering vendor-agnostic technical scoring, supply chain resilience maps, and live regulatory update feeds aligned with FDA FSMA Rule 21 CFR Part 117, EU Regulation (EC) No 1935/2004, and NFPA 652 implementation timelines.

To receive a customized Grain Milling Ignition Risk Assessment Report—including facility-specific sensor gap analysis, compliance alignment matrix, and Tier-1 supplier shortlist with verified field performance data—contact TradeNexus Edge today.
