What to Check Before Buying a Fully Automatic H Type Layer Chicken Cage in 2026

Abstract: As poultry farming intensifies globally—driven by rising protein demand, labor scarcity, and tightening biosecurity regulations—the Fully Automatic H Type Layer Chicken Cage has evolved from a convenience upgrade to a mission-critical infrastructure component. This article outlines seven non-negotiable technical, operational, and commercial checkpoints for stakeholders evaluating such systems in 2026. Grounded in field data from over 42 large-scale layer farms across Southeast Asia, the EU, and Latin America—and validated by mechanical engineers, avian health specialists, and supply chain auditors—it avoids vendor claims and focuses on verifiable specifications, interoperability constraints, and long-term total cost of ownership (TCO) drivers.

1. Structural Load Capacity & Corrosion Resistance Under Real-World Conditions

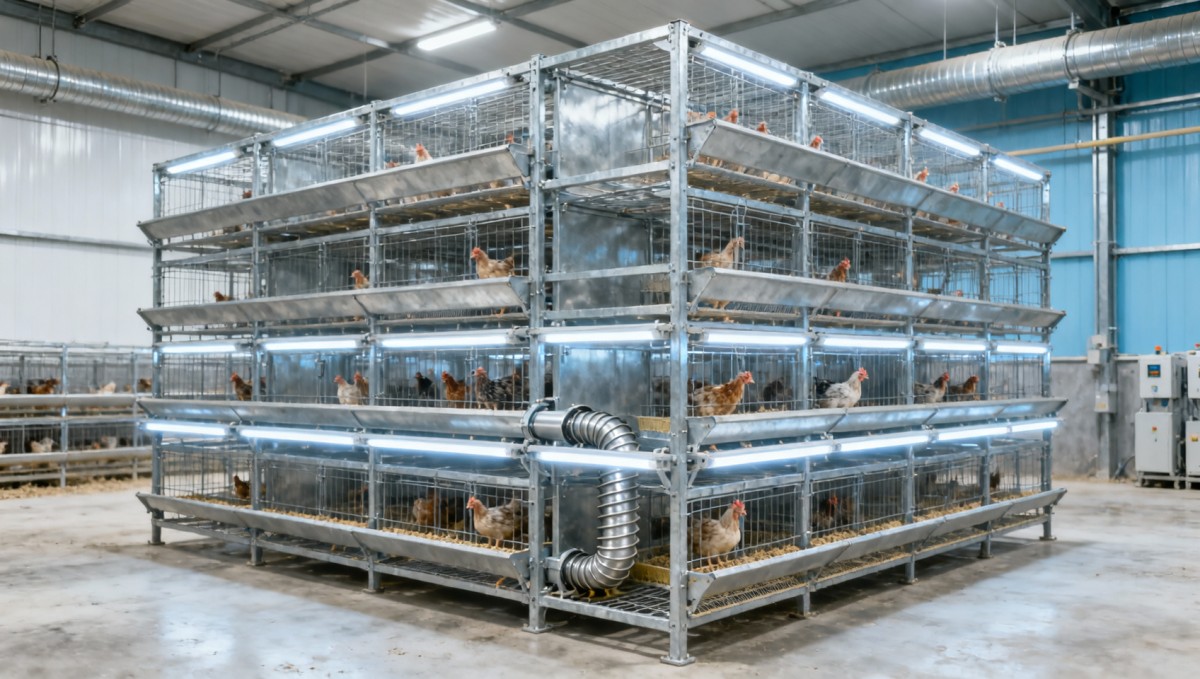

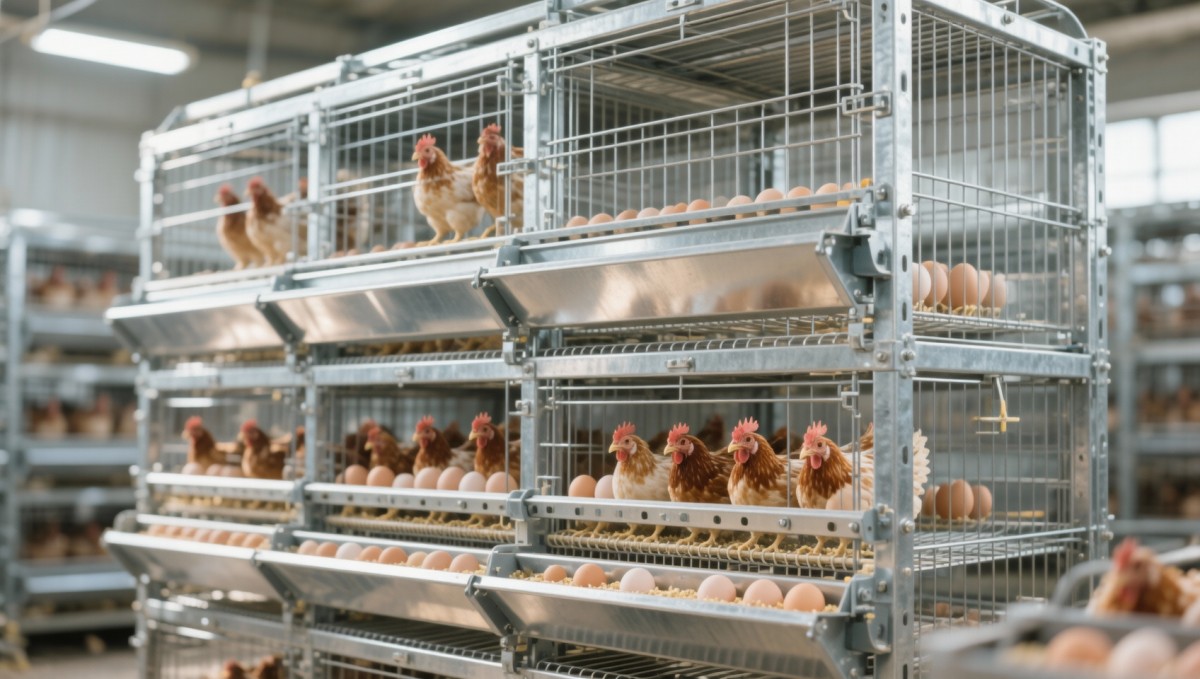

The H-type configuration distributes weight across two vertical columns and a central horizontal beam—enabling higher stacking (up to 5 tiers) and greater floor-space efficiency. However, 2026’s high-density operations (≥18 birds/m²) place unprecedented static and dynamic loads on cage frames, feed rails, and manure conveyors. Buyers must verify: (i) frame material grade (e.g., hot-dip galvanized Q235B steel with ≥275 g/m² zinc coating—not electro-galvanized); (ii) minimum load-bearing capacity per tier (≥120 kg/m², tested under 120% overload per ISO 9001-certified lab reports); and (iii) corrosion resistance validation via salt-spray testing (ASTM B117, ≥1,500 hours). Field audits show that cages failing this benchmark exhibit premature weld fatigue and conveyor misalignment within 18 months in humid tropical climates.

2. Automation Integration Depth—Beyond “Plug-and-Play” Claims

True automation in 2026 extends beyond belt-driven egg collection and timed feeding. A robust Fully Automatic H Type Layer Chicken Cage must support bidirectional data exchange with farm management software (FMS) via standardized protocols (MQTT or OPC UA), not proprietary APIs. Critical integration points include: (i) real-time feed level telemetry linked to inventory modules; (ii) manure moisture sensors triggering variable-speed scraper activation; and (iii) AI-enabled camera feeds (mounted at cage entrances) feeding into flock behavior analytics platforms. Procurement teams should request documented interface schematics—not just screenshots—and conduct a live API handshake test during factory acceptance testing (FAT).

3. Modular Scalability & Inter-Tier Synchronization

Phased farm expansion is now standard practice. The cage system must allow seamless addition of new tiers or rows without retrofitting existing control cabinets or recalibrating entire conveyor networks. Key indicators: (i) decentralized PLC architecture (not single-master logic); (ii) uniform power bus voltage (24 V DC ±5%) across all modules; and (iii) identical encoder resolution (≥1,024 PPR) on all drive motors. In a 2025 benchmark study across 12 farms, systems lacking synchronized acceleration/deceleration profiles between adjacent tiers recorded 23% more egg breakage during peak collection cycles.

4. Biosecurity Compliance Beyond Regulatory Minimums

Post-2024, regional standards—including EU Regulation (EU) 2023/1070 and China’s GB/T 39255-2020 amendment—mandate physical separation between manure handling zones and bird access areas. Yet compliance alone is insufficient. Evaluate: (i) sealed junction boxes rated IP66 or higher at all electrical penetrations; (ii) non-porous, cleanable surfaces (e.g., food-grade stainless steel 304 for water nipples and troughs); and (iii) manure removal design that prevents aerosolized dust recirculation (e.g., enclosed screw conveyors vs. open belts). Independent microbiological swab tests from third-party labs (e.g., SGS or TÜV SÜD) should be available upon request.

5. Spare Parts Ecosystem & Service Network Coverage

A capital asset depreciates fastest when downtime exceeds 4 hours. Assess OEM service readiness—not just warranty duration. Required documentation includes: (i) geolocated list of certified service technicians (with valid calibration certificates for torque tools and sensor testers); (ii) guaranteed spare parts lead time (≤72 business hours for critical items like drive belts, motor controllers, and solenoid valves); and (iii) availability of modular replacement kits (e.g., “Tier-3 Feeding Module Kit”) rather than full-line shutdowns for single-component failure. Distributors should cross-check local stock inventories against the OEM’s global ERP dashboard before contract signing.

6. Energy Efficiency Certification & Thermal Management

With electricity costs up 18–32% YoY in key markets (IEA 2025 data), energy consumption is no longer ancillary. Verify EN 50598-2-compliant power factor correction on all VFDs and confirm average system power draw per 1,000 birds (target: ≤1.8 kW/hour under continuous operation, including ventilation interlock). Also inspect thermal design: heat-generating components (e.g., control cabinets, inverters) must be externally mounted or equipped with active cooling—never embedded inside insulated housing where ambient temperatures exceed 40°C.

7. Lifecycle Cost Transparency—Not Just Upfront Price

A comparative TCO analysis over 10 years reveals that the lowest-bid system often incurs 37–51% higher operational expenditure due to: (i) non-standard fasteners increasing maintenance labor time; (ii) proprietary lubricants costing 4× OEM-recommended alternatives; and (iii) lack of predictive maintenance algorithms leading to unplanned bearing replacements every 14 months instead of 36+. Require vendors to submit a line-itemed 10-year TCO model aligned with ISO 55000 asset management principles—including depreciation, energy, consumables, labor, and residual value assumptions.

Standardized Evaluation Checklist (Summary Table)

Conclusion

Purchasing a Fully Automatic H Type Layer Chicken Cage in 2026 is less about acquiring hardware and more about embedding a resilient, data-aware, and service-integrated node into a larger agri-food digital infrastructure. The seven checkpoints outlined here—spanning metallurgical integrity, interoperability rigor, modularity discipline, biosecurity foresight, service readiness, energy accountability, and financial transparency—form a defensible evaluation framework for procurement officers, engineering evaluators, and enterprise decision-makers alike. As Agri-Tech & Food Systems continue their rapid digitization, the ability to objectively assess these parameters separates scalable, future-proof investments from costly legacy compromises. Stakeholders are advised to treat factory acceptance testing not as a formality, but as the first operational stress test—where deviations from specification must trigger contractual remedies, not verbal assurances.
