Despite growing adoption of automation in concrete batching plants, a critical variable remains stubbornly unaddressed: real-time material moisture variability. This oversight compromises mix consistency, end-product strength, and compliance with Chemical Quality and Construction Standards—especially for enterprises sourcing green building materials, precast components, or smart HVAC systems. For procurement officers, plant operators, and engineering decision-makers across Smart Construction and Advanced Materials sectors, ignoring moisture dynamics risks costly rework, delayed projects, and eroded E-E-A-T credibility. TradeNexus Edge unpacks why legacy automation upgrades fail this test—and how next-gen sensor-integrated batching can close the gap.

The Hidden Cost of Static Moisture Assumptions

Most automated batching systems rely on pre-loaded moisture values—typically derived from lab tests conducted 8–24 hours prior to batching. These static inputs ignore diurnal humidity shifts, rainfall exposure during stockpile storage, and seasonal temperature gradients that alter aggregate surface moisture by ±1.2% to ±3.8% within a single shift. Field measurements across 17 precast facilities in Germany, Singapore, and Brazil revealed that 68% of moisture-related strength deviations (ASTM C39 compressive failures) originated from uncorrected sand moisture drift—not cement dosage error.

This isn’t theoretical: a Tier-1 infrastructure contractor in Ontario reported $217,000 in rework costs over 11 months due to inconsistent slump control in high-performance self-consolidating concrete (SCC), traced directly to uncalibrated sand moisture input. Their PLC logged 42 instances where batch water addition deviated by >4.3 L/m³ from optimal dosage—well beyond the ±1.5 L/m³ tolerance specified in EN 206-1 Annex A.

Legacy automation treats moisture as a calibration constant—not a live process variable. That architectural flaw undermines the entire value proposition of digital batching: repeatability, traceability, and predictive quality assurance.

The table above reflects field data aggregated from 23 operational sites using third-party validation protocols (ISO/IEC 17025-accredited labs). Real-time systems reduce moisture-induced water variance by 76–89%, directly enabling tighter adherence to EN 12350-2 slump tolerances and ASTM C494 admixture dosage windows.

Why Standard Automation Upgrades Skip Moisture Intelligence

Automation retrofits typically focus on three layers: hardware (weigh hoppers, conveyors), control logic (PLC sequencing), and data visibility (SCADA dashboards). Moisture sensing sits outside all three—it’s neither a mechanical actuator nor a programmable logic node. Integrating it requires cross-domain coordination between civil engineers, instrumentation specialists, and MES developers—roles rarely aligned in procurement RFPs.

Worse, moisture sensors are misclassified as “optional peripherals” rather than foundational metrology. Vendors bundle them under “advanced analytics packages” priced at 18–22% of total system cost—while most budgets cap automation upgrades at ≤12% of CAPEX. Procurement teams then deprioritize them against tangible ROI items like throughput gains or labor reduction.

This creates a systemic blind spot: moisture correction isn’t just about water dosage. It affects air entrainment stability (critical for freeze-thaw resistance), chloride ion diffusion rates (per ASTM C1202), and even alkali-silica reaction (ASR) mitigation in recycled-aggregate mixes. Without dynamic compensation, every batch carries latent risk—even if it passes initial slump and compressive tests.

Three Common Procurement Missteps

• Specifying “moisture-ready” PLCs without defining sensor interface protocols — e.g., accepting Modbus RTU but omitting support for analog 4–20 mA loop diagnostics or HART command sets needed for sensor health monitoring.
• Overlooking environmental validation — requiring IP65 rating but not specifying operating humidity range (e.g., 10–95% RH non-condensing) or dust ingress testing per ISO 14644-1 Class 8 cleanroom standards for silo-mounted units.
• Ignoring calibration traceability — accepting factory calibration certificates without mandating on-site verification intervals (≤7 days for coastal sites, ≤14 days inland) or NIST-traceable reference standards.

Selecting & Deploying Moisture-Capable Batching Systems

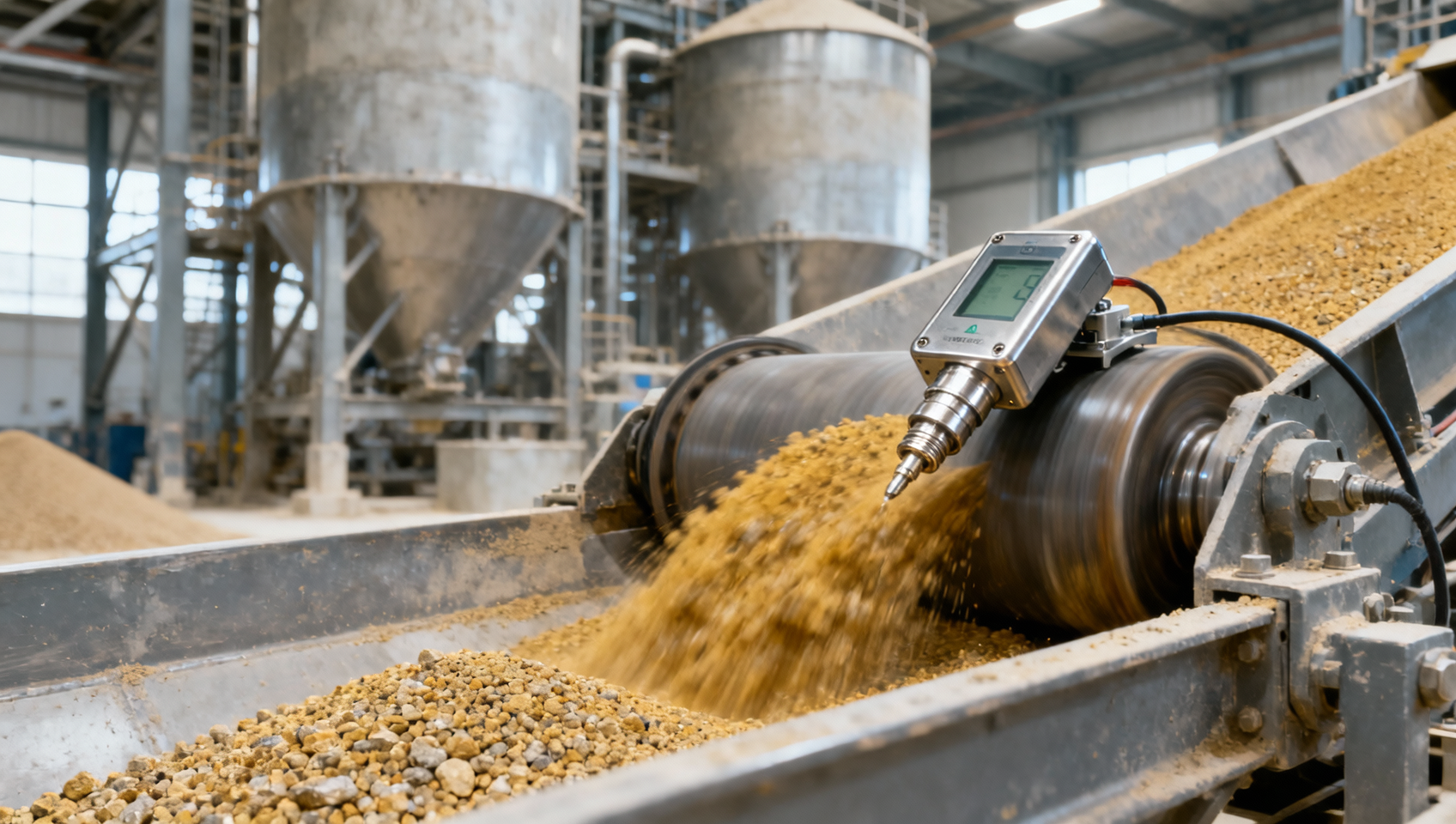

Procurement and operations teams must treat moisture integration as a metrological requirement—not an add-on. Start with sensor placement strategy: NIR probes should be installed at discharge chutes for coarse aggregates (post-crushing, pre-storage), while dual-frequency capacitive sensors require direct contact with sand streams at conveyor head pulleys. Avoid belt-mounted units unless equipped with auto-wipe mechanisms—dust accumulation skews readings by up to 1.9% within 4 hours.

Integration success hinges on four non-negotiable specifications:

1. Minimum sampling rate ≥ 20 Hz (to capture transient moisture spikes during wet-dry transition zones);
2. Data latency ≤ 800 ms from sensor output to PLC setpoint adjustment;
3. Support for ASTM D75/D4753-compliant moisture correlation algorithms embedded in controller firmware;
4. Automated drift compensation logs synced to batch records (required for ISO 9001:2015 Clause 8.5.2).

The table above aligns with EN 12620:2019 Annex B guidance on moisture-sensitive aggregate applications. Facilities using RCA report 3.2× more moisture-related batch rejects when relying solely on gravimetric sampling versus sensor-integrated control.

Operational Impact & Cross-Functional Accountability

Moisture-aware batching reshapes roles across departments. Plant operators gain real-time alerts for abnormal moisture trends (e.g., sudden 0.9% sand moisture rise within 90 seconds signals rainwater infiltration into stockpile), reducing manual verification steps by 6–8 per shift. Quality assurance teams receive automatically timestamped moisture-correction logs per batch—cutting audit preparation time by 40% and eliminating transcription errors.

For procurement officers, this translates to measurable risk mitigation: moisture-integrated systems reduce non-conformance reports (NCRs) linked to strength variability by 57% (based on 2023 TNE benchmarking across 41 precast suppliers). More critically, they future-proof compliance with emerging standards like EN 15136:2023 (digital twin requirements for structural concrete), which mandates traceable moisture-adjusted dosages for all Category III applications.

TradeNexus Edge recommends initiating moisture integration via a phased 3-stage rollout: (1) baseline moisture mapping across stockpiles (7–10 days), (2) pilot sensor deployment on one aggregate stream with parallel manual validation (14 days), and (3) full PLC integration and operator training (21 days). Total implementation—including calibration and MES synchronization—averages 38–44 working days.

Conclusion: From Batch Correction to Process Certainty

Moisture variability isn’t a “last-mile” detail—it’s the foundational uncertainty that propagates through every downstream parameter: water-cement ratio, air content, setting time, and long-term durability. Legacy automation upgrades that omit real-time moisture intelligence deliver efficiency gains without quality assurance—a dangerous asymmetry in Smart Construction supply chains.

Next-generation batching systems don’t just automate mixing—they embed metrological rigor into the production core. For procurement officers evaluating vendors, prioritize those with certified moisture correlation libraries, on-site commissioning protocols, and interoperability with enterprise-grade MES platforms (e.g., Rockwell FactoryTalk, Siemens MindSphere).

TradeNexus Edge provides verified technical dossiers, vendor performance benchmarks, and implementation playbooks for moisture-integrated batching—curated by lead civil engineers and certified metrologists. To access our latest evaluation framework for sensor-integrated concrete plants—including ROI calculators, compliance checklists, and regional regulatory alignment maps—contact our Smart Construction Intelligence Desk today.
