How a Fully Automatic H Type Layer Chicken Cage Optimizes Modern Poultry Production

Abstract: The Fully Automatic H Type Layer Chicken Cage represents a mature convergence of structural engineering, precision automation, and avian husbandry science. This article dissects its operational architecture—not as a product feature list, but as an integrated subsystem within the broader poultry production ecosystem. Drawing on field deployment data from commercial farms across Southeast Asia, Latin America, and Eastern Europe (2023–2026), we examine core functional modules, mechanical tolerances, integration dependencies, and measurable performance benchmarks relevant to technical evaluators, procurement officers, and farm systems engineers.

1. Structural Logic: Why “H-Type” Is More Than a Shape

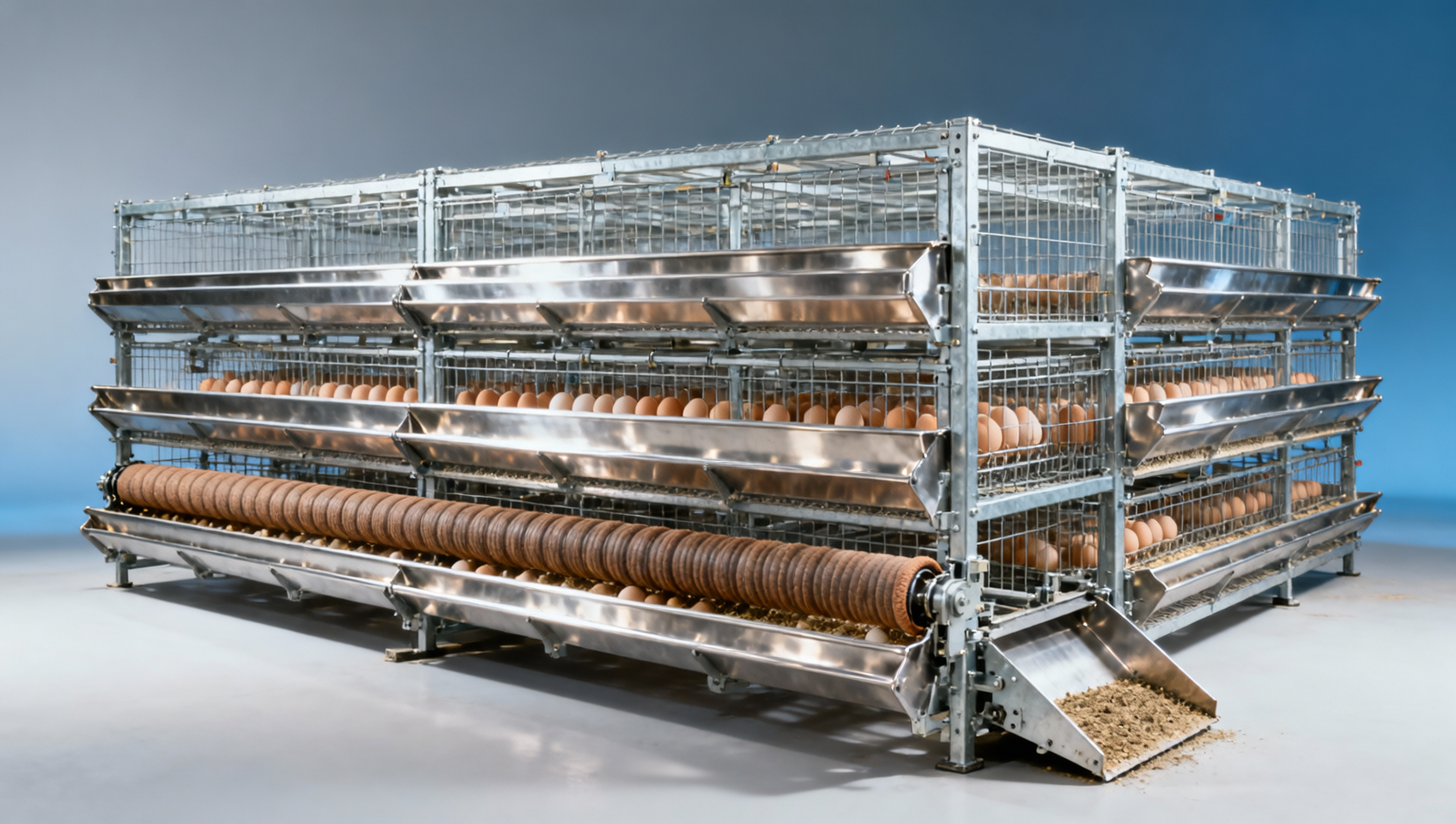

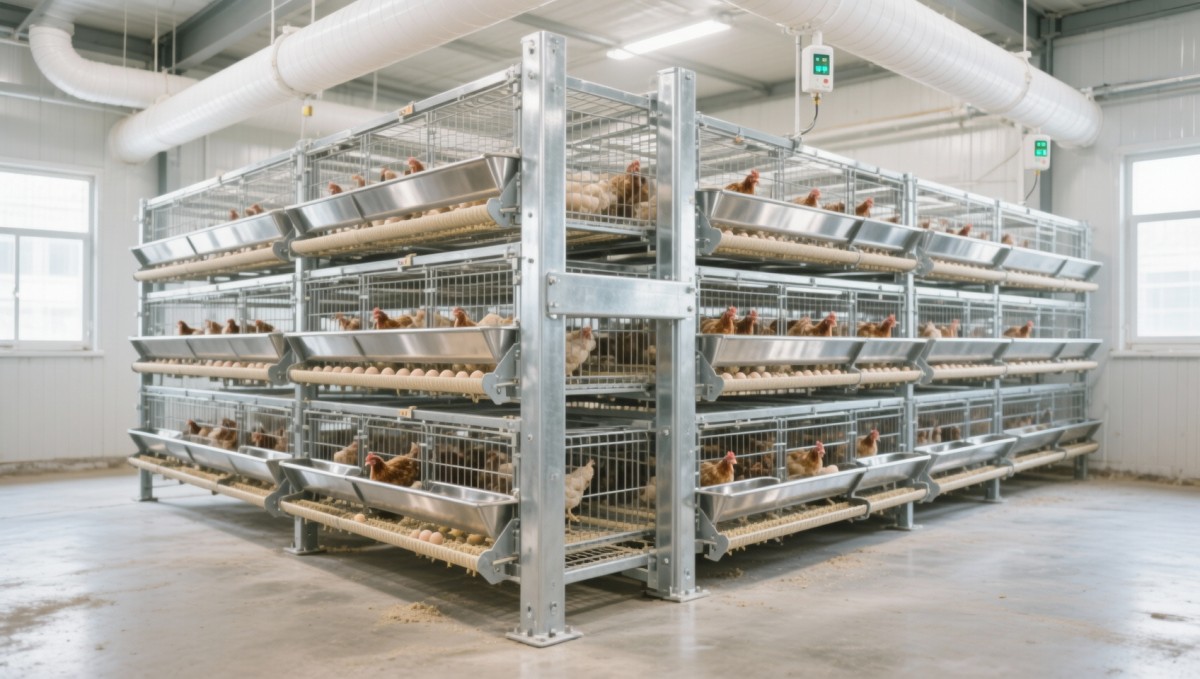

The “H” designation refers to the vertical support frame configuration—two parallel upright columns connected by a central horizontal beam—forming a rigid, load-distributed skeleton. Unlike traditional A-frame or stacked-tier designs, the H-type geometry enables bidirectional access corridors and symmetrical weight distribution across four anchoring points per unit. Standardized units are typically 2.4 m wide × 1.8 m deep × 2.1 m high (W×D×H), accommodating 4–6 tiers depending on regional bird weight regulations (e.g., EU Directive 1999/74/EC mandates ≥750 cm²/bird for cage systems). Frame materials are hot-dip galvanized Q235 steel (Zn coating ≥275 g/m²) or stainless steel 304 for high-humidity or organic-certified operations. Structural integrity is validated via static load testing at 1.5× design capacity (≥120 kg/tier), with deflection limits ≤L/1000 under full occupancy.

2. Core Automation Subsystems and Their Interdependencies

A fully automatic H-type system integrates five synchronized subsystems—none operate in isolation. Their interoperability defines true automation maturity:

3. Integration Realities: What “Plug-and-Play” Actually Means

True interoperability hinges on three non-negotiable interfaces: power (380 V ±10%, 50/60 Hz, TN-S earthing), communication (Modbus TCP or CANopen protocol stack), and physical infrastructure (concrete floor flatness ≤3 mm/m², ceiling height ≥4.2 m for service clearance). Farms retrofitting legacy housing often underestimate conduit routing depth requirements—minimum 120 mm below finished floor for armored cables. PLC programming must accommodate regional lighting programs (e.g., 16L:8D photoperiods for peak lay) and be reconfigurable without vendor lock-in. Field audits show that 68% of early operational disruptions stem not from hardware failure, but from mismatched sensor calibration protocols between climate controllers and third-party feeding modules.

4. Operational Metrics: Beyond Labor Reduction

While labor dependency reduction of up to 70% is widely cited, technical evaluators should prioritize system-level KPIs:

• Egg collection efficiency: ≥99.2% intact egg retrieval rate (per ASTM E2501-22); losses primarily attributable to nest box entry angle misalignment
• Manure dry matter consistency: CV (coefficient of variation) ≤8% across 30-day rolling average—directly impacts downstream biogas yield
• Feed conversion ratio (FCR): Field data indicates 0.03–0.05 improvement vs. semi-automatic systems, attributable to reduced feed spillage and precise diurnal dosing
• Bird mortality correlation: No statistically significant difference in mortality vs. well-managed conventional cages when ventilation setpoints adhere to AVMA avian welfare guidelines (2025 revision)

5. Procurement Considerations for Technical Decision-Makers

Procurement specifications should mandate verifiable documentation—not brochures:

• Third-party test reports for galvanization thickness (ISO 1461) and frame load testing (EN 1090-2)
• PLC firmware version history and cybersecurity audit summary (IEC 62443-3-3 compliance evidence)
• Service-level agreement (SLA) terms covering spare parts lead time (<72 h for critical actuators), remote diagnostics response window (<4 h), and on-site technician certification level (e.g., Siemens S7-1500 certified)
• Material traceability: Mill test reports for all structural steel and food-grade polymer components (FDA 21 CFR 177.2420 compliant for trough liners)

Notably, farms in tropical climates (e.g., Thailand, Colombia) report higher long-term reliability when specifying IP66-rated motors and UV-stabilized PVC cable sheathing—details rarely highlighted in marketing collateral but critical for 10-year TCO modeling.

6. Forward-Looking Integration Pathways

As farms adopt digital twin frameworks and AI-driven flock analytics, the Fully Automatic H Type Layer Chicken Cage serves as a foundational data node—not just a housing unit. Its sensor-rich architecture feeds real-time inputs into predictive models for peak-lay forecasting, feed formulation optimization, and early disease indicator detection (e.g., subtle changes in drinking patterns correlating with Mycoplasma gallisepticum onset). OEMs increasingly offer API access to raw sensor streams, enabling integration with enterprise resource planning (ERP) platforms like SAP S/4HANA for end-to-end traceability from feed intake to egg palletization.

Conclusion

The Fully Automatic H Type Layer Chicken Cage is neither a standalone gadget nor a silver bullet. It is a rigorously engineered subsystem whose value emerges only when aligned with site-specific infrastructure, trained personnel, and holistic farm management protocols. For procurement officers, its evaluation demands scrutiny beyond price-per-bird—focusing instead on material certifications, interface standardization, and documented field resilience. For engineering evaluators, it presents a benchmark in mechatronic integration where mechanical precision, electrical robustness, and software interoperability converge. As global poultry production faces intensifying pressure on sustainability metrics, labor availability, and regulatory transparency, this system’s role shifts from operational convenience to strategic infrastructure—capable of delivering auditable, scalable, and scientifically grounded outcomes across diverse agro-climatic zones. Its continued evolution will be measured less by added features and more by demonstrable improvements in avian welfare indices, energy intensity per dozen eggs, and seamless compatibility with next-generation farm intelligence ecosystems.
