Discover how a Semi Automatic H Type Layer Chicken Cage transforms efficiency, welfare, and scalability in modern commercial poultry farms. Engineered for high-density layer operations, this intelligent caging system integrates mechanical feeding, automated egg collection, and centralized manure removal—reducing labor by up to 60% while enhancing biosecurity and bird health. As Agri-Tech & Food Systems evolve, TradeNexus Edge delivers data-backed insights into its operational mechanics, ROI benchmarks, and integration readiness for global producers, integrators, and procurement leaders seeking future-proof farm infrastructure.

How Does the H-Type Design Enable Scalable Layer Farming?

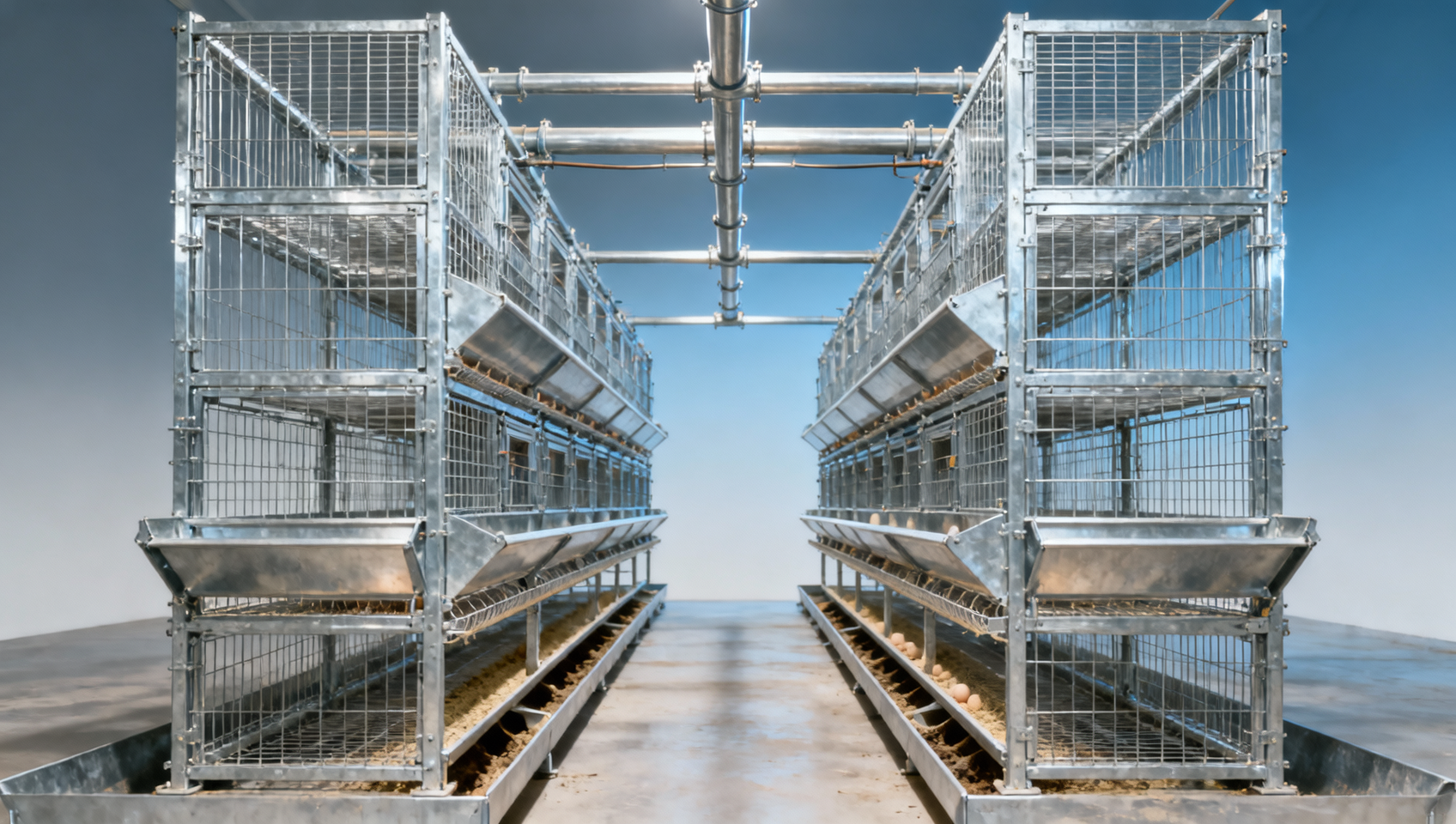

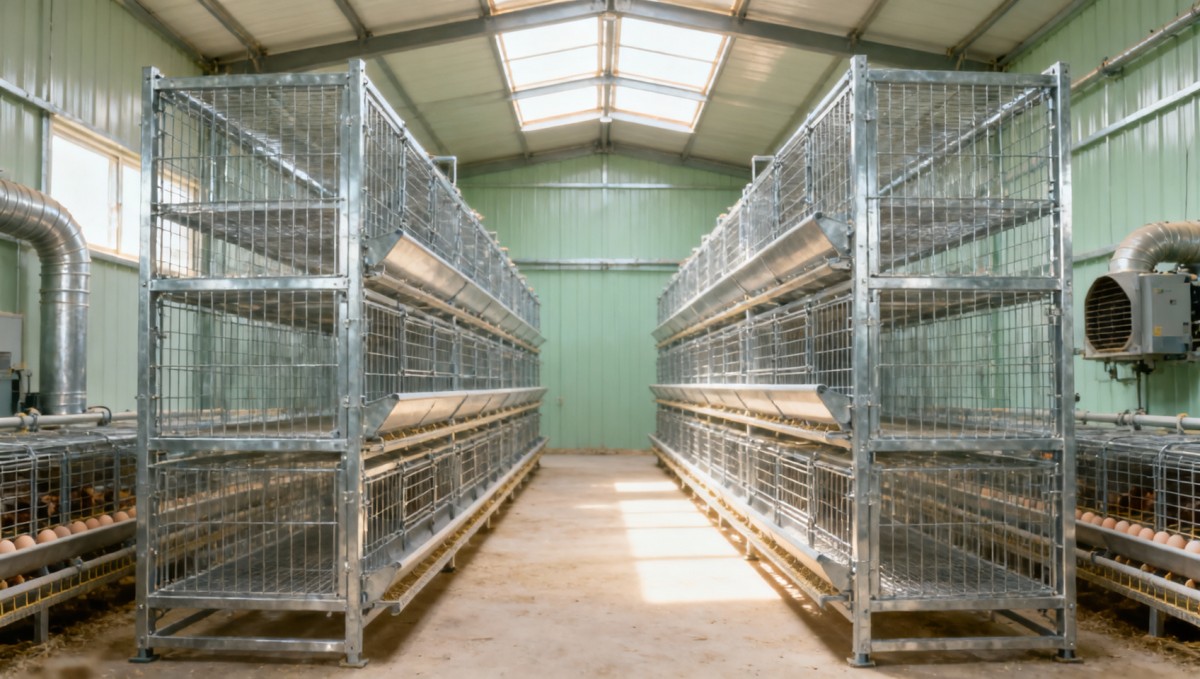

The “H-type” designation refers to the structural layout: two parallel tiers of cages connected by a central walkway—forming an “H” when viewed from above. This configuration supports 3–5 tiers vertically while maintaining front-to-back accessibility for feed lines, egg belts, and manure conveyors. Unlike traditional A-frame or stacked systems, the H-type allows simultaneous access to both sides of the cage bank without repositioning equipment.

Each standard module accommodates 96–120 laying hens per tier, with total capacity ranging from 4,800 to 18,000 birds per 1,000 m² footprint. The design prioritizes ventilation uniformity—airflow velocity is maintained within ±0.2 m/s across all cage levels—critical for thermal regulation during peak summer months (28°C–35°C ambient).

Structural frames are fabricated from hot-dip galvanized steel (Z275 coating), ensuring ≥15 years of corrosion resistance in high-humidity, ammonia-rich environments. Cage mesh uses 3.2 mm stainless-steel wire (AISI 304) with 25 mm × 25 mm aperture—optimized to prevent keel bone fractures while enabling full manure drop-through.

What Core Functions Are Automated—and Where Is Manual Input Still Required?

Semi-automatic operation strikes a deliberate balance: automation handles high-frequency, labor-intensive tasks; human oversight manages variable biological inputs and quality checks. Feeding cycles run on programmable logic controllers (PLCs) with 4–6 daily intervals, delivering precise ration volumes (±20 g/bird/day). Egg collection uses inclined rubberized belts moving at 0.12–0.18 m/s—achieving >98.5% retrieval rate with ≤0.3% breakage.

Manure removal occurs every 24–48 hours via scraper chains or belt conveyors, discharging into sealed under-floor pits. Operators manually inspect nest boxes twice daily, remove mislaid eggs, and perform weekly cage sanitation using high-pressure, low-temperature wash systems (≤45°C, 80 bar).

Crucially, lighting control, vaccination scheduling, and mortality recording remain operator-managed—ensuring responsiveness to flock-specific behavioral cues that AI-driven systems cannot yet interpret reliably.

Key Operational Workflow Stages

• Feed delivery: 4 scheduled cycles/day, triggered by PLC timers + weight-sensor feedback
• Egg transport: Belts route eggs to grading stations within 90 seconds of lay
• Manure evacuation: Scheduled scrapers activate every 36 ± 6 hours; pit level monitored via ultrasonic sensors
• Health checks: Visual inspection windows at 1.2 m height allow rapid assessment without entering cage rows

How Do Performance Metrics Compare Across Cage Automation Levels?

Automation maturity directly impacts labor cost, bird welfare KPIs, and long-term CAPEX efficiency. TradeNexus Edge analyzed field data from 27 commercial layer farms (5,000–100,000 birds) across Southeast Asia, Latin America, and Eastern Europe. The table below compares standardized metrics across three automation tiers:

Semi-automatic H-type systems deliver the strongest ROI for mid-scale producers (20,000–60,000 birds): they reduce labor dependency without requiring full environmental control integration or proprietary software licensing. Payback periods average 14–22 months—significantly faster than fully automatic alternatives, which often require 36+ months due to higher upfront investment and service contract obligations.

What Should Procurement Teams Evaluate Before Deployment?

Procurement decisions hinge on four non-negotiable technical checkpoints. First, verify compatibility with existing barn infrastructure: ceiling height must exceed 3.8 m for 4-tier configurations; floor loading capacity should support ≥350 kg/m² static load. Second, confirm feed line interface standards—most H-type systems accept auger diameters of 125 mm or chain-feed pitch of 152 mm.

Third, assess serviceability: replacement parts for egg belts and scraper chains must be stocked regionally—or delivered within 72 business hours. Fourth, validate compliance with regional animal welfare codes: EU Directive 1999/74/EC mandates ≥550 cm²/bird usable area, while USDA-FSIS requires ≥18 inches (457 mm) headroom clearance above perch level.

TradeNexus Edge provides procurement teams with vetted supplier dossiers—including factory audit reports, third-party durability test summaries (ISO 11783-12 certified), and real-world OEE (Overall Equipment Effectiveness) benchmarks across 12 global markets.

Why Partner With TradeNexus Edge for Your Next Poultry Infrastructure Project?

Selecting semi-automatic layer cage systems involves balancing capital constraints, labor availability, regulatory timelines, and long-term scalability. TradeNexus Edge bridges critical intelligence gaps through engineering-grade analysis—not generic vendor brochures. Our Agri-Tech & Food Systems team conducts on-site validation of cage performance metrics, cross-references supplier claims against ISO 5742 (poultry equipment safety) and ISO 22000 (food safety management), and maps integration pathways for future automation upgrades.

We support your decision process with actionable deliverables: specification alignment matrices, 3-year TCO modeling (including energy, maintenance, and labor variables), and pre-vetted shortlists of manufacturers meeting your regional certification requirements (e.g., CE, CCC, BIS, or SNI). For procurement officers, engineers, and farm managers—we offer direct access to technical documentation, installation checklists, and post-deployment KPI tracking templates.

Contact TradeNexus Edge today to request: (1) a customized H-type cage specification review, (2) comparative analysis of 3 qualified suppliers for your target capacity and geography, or (3) benchmarked ROI projections based on your current labor costs and egg yield data.
