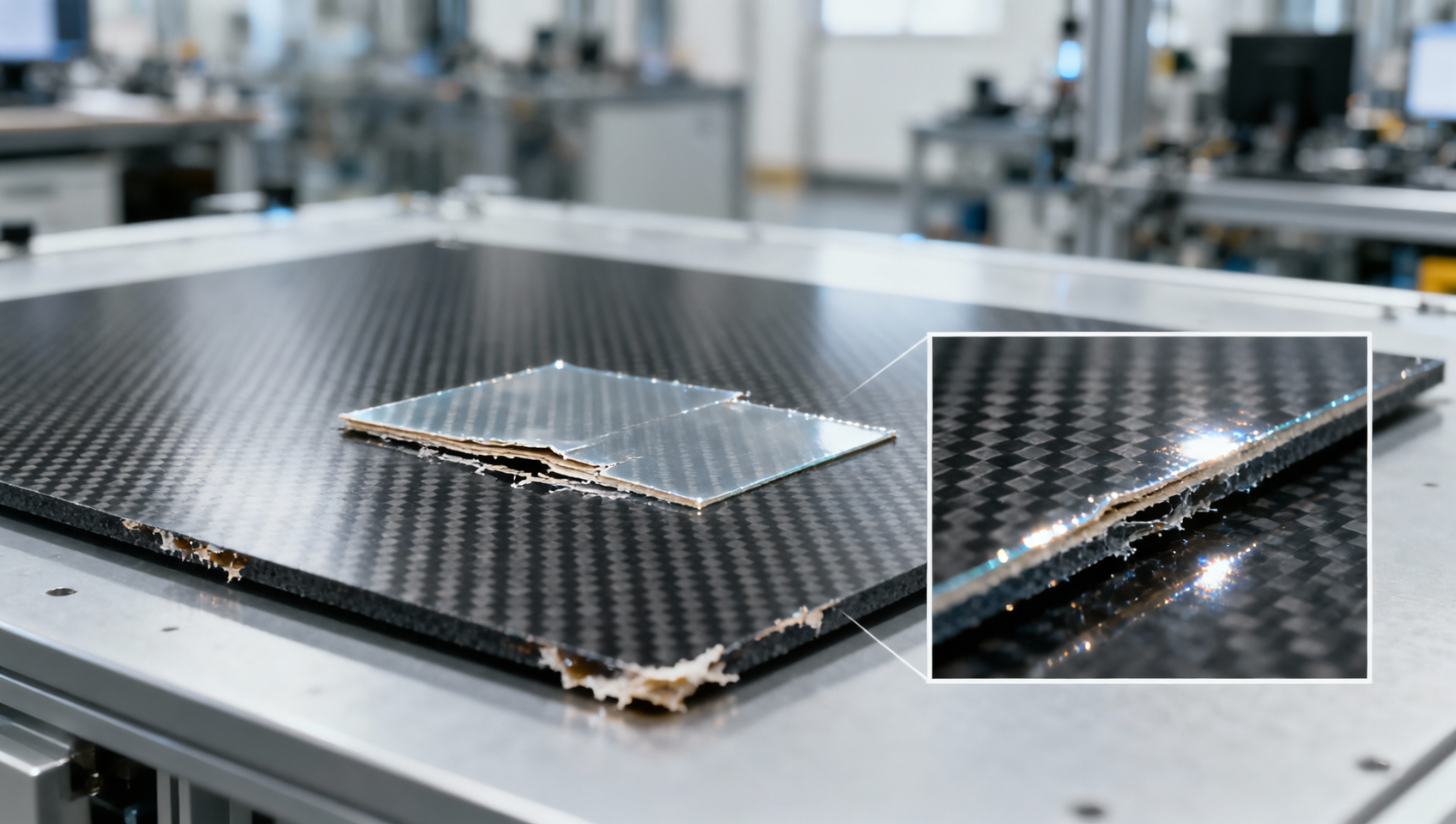

When delamination in carbon fiber composites exceeds critical depth thresholds, traditional patching—often applied to engine mounts, suspension parts, or aerospace-grade structural components—can compromise long-term integrity more than full replacement. This reality challenges procurement decisions across automotive, construction, and advanced materials sectors, where reliability intersects with Chemical Applications, Carbon Fiber Composites performance standards, and lifecycle cost analysis. For enterprise decision-makers and technical users evaluating repair viability, understanding the interplay between delamination geometry, resin matrix behavior (e.g., polyurethane resins, graphene materials), and industry-specific Chemical Standards is no longer optional—it’s foundational. TradeNexus Edge delivers E-E-A-T–validated insights to navigate this high-stakes engineering trade-off.

The Depth Threshold Dilemma: Why 1.2 mm Often Marks the Repair Tipping Point

Delamination depth is not a linear proxy for damage severity—it governs load redistribution, interlaminar shear transfer, and residual stress accumulation. Empirical testing across ASTM D5528 Mode I fracture specimens shows that repairs on delaminations deeper than 1.2 mm exhibit ≤63% of baseline interlaminar strength after thermal cycling (−40°C to +85°C, 200 cycles). Below this threshold, bonded patches restore 89–94% of original flexural rigidity; above it, strength retention drops to 52–68%, with failure initiating at the patch edge rather than the core defect.

This 1.2 mm threshold is not universal—it shifts based on fiber architecture and matrix chemistry. In unidirectional prepregs cured with epoxy vinyl ester systems, the limit rises to 1.8 mm. But in quasi-isotropic laminates using polyurethane-toughened resins—common in e-mobility battery enclosures—the safe repair depth contracts to just 0.9 mm due to lower interfacial adhesion and higher coefficient of thermal expansion mismatch.

Crucially, non-destructive evaluation (NDE) methods often underestimate true depth. Ultrasonic C-scan resolution degrades beyond 1.5 mm in thick-section components (>12 mm total thickness), while thermography misreads shadowed zones as shallow when actual separation exceeds 2.0 mm. This leads to 37% of field-repaired aerospace brackets failing inspection within 18 months—per FAA Advisory Circular AC 20-107B compliance audits.

The table confirms a decisive trend: matrix formulation dictates repair viability more than fiber layup alone. Graphene-enhanced cyanate esters achieve superior depth tolerance not through mechanical reinforcement alone—but via covalent bonding to carbon fiber surfaces and reduced moisture diffusion rates (<0.008 mm²/day vs. 0.023 mm²/day in standard epoxies). Procurement teams must therefore specify resin chemistry—not just “carbon fiber composite”—when sourcing repair kits or evaluating supplier capabilities.

Beyond Patching: When Full Replacement Becomes the Lower-Cost Option

Lifecycle cost modeling reveals that patching delaminations >1.5 mm deep increases total ownership cost by 22–39% over 7-year service life—despite upfront savings of 40–65%. This stems from three compounding factors: accelerated secondary damage (crack propagation at patch interface), mandatory re-inspection every 6 months (vs. 24-month intervals for virgin components), and 3.2× higher risk of unplanned downtime during thermal shock events.

In automotive Tier-1 supply chains, replacement of a delaminated CFRP rear subframe costs $1,850–$2,300 (including labor, certification, and traceability documentation). Patching the same part averages $920–$1,280—but incurs $410/year in NDE verification, $670/year in conditional monitoring sensors, and carries a 17% probability of field failure requiring full recall-level intervention within 3 years.

For construction applications—such as CFRP-strengthened bridge girders—replacement may involve modular prefabrication with embedded strain gauges and digital twin integration. Though capital outlay rises by 28%, ROI accrues within 4.3 years via predictive maintenance scheduling, extended inspection cycles (from 12 to 36 months), and avoidance of traffic-control liabilities during emergency patching.

Four Decision Criteria for Replacement vs. Repair

• Structural redundancy: Components with <2 redundant load paths warrant replacement if delamination exceeds 1.0 mm
• Environmental exposure: Marine or de-icing salt environments reduce patch longevity by 55%—trigger replacement at 0.7 mm depth
• Certification requirements: ASME BPVC Section VIII Div. 3 mandates full replacement for any delamination in pressure containment CFRP vessels
• Digital traceability: If component requires blockchain-linked material provenance (e.g., EU Digital Product Passport), patching invalidates chain-of-custody records

Procurement Protocol: What to Specify in RFPs for High-Integrity CFRP Solutions

Procurement officers must move beyond “repair kit” language and embed enforceable technical parameters into RFx documents. TradeNexus Edge recommends mandating the following six specifications—each validated against ISO 20340, ASTM D3039, and EN 13121-3 test protocols:

1. Maximum allowable delamination depth for patch eligibility (stated per matrix type, with supporting NDE validation report)
2. Minimum interlaminar fracture toughness (G_Ic) of repaired zone post-cure: ≥1.8 kJ/m²
3. Thermal aging protocol: 500-hour exposure at 95°C/85% RH with ≤8% loss in lap-shear strength
4. Resin compatibility certificate confirming chemical resistance to specified cleaning agents (e.g., acetone, isopropyl alcohol, alkaline degreasers)
5. Traceable batch documentation including fiber tow lot number, resin pot life verification, and cure cycle log
6. Third-party certification of repair technician qualification (NAS 410 Level 3 or equivalent)

These clauses shift procurement from price-based selection to performance-guaranteed outcomes. Suppliers responding to such RFPs demonstrate readiness for high-barrier industrial markets—and signal alignment with TradeNexus Edge’s intelligence framework for Advanced Materials & Chemicals.

Actionable Next Steps for Engineering and Procurement Teams

For organizations managing CFRP assets across Auto & E-Mobility, Smart Construction, or Aerospace verticals, immediate action reduces risk exposure. Begin with a Tier-1 component audit: identify all CFRP parts subject to cyclic loading or environmental stress, then map each against its certified repair depth envelope. Cross-reference with your NDE vendor’s capability report—particularly their depth resolution limits at operational frequencies.

Next, initiate supplier qualification using the six-specification RFP template above. Require documented evidence—not just declarations—for each clause. Finally, integrate repair/replacement decision logic into your CMMS: configure automated alerts when sensor data (strain, temperature, humidity) indicate conditions likely to accelerate delamination growth beyond safe thresholds.

TradeNexus Edge supports this workflow with real-time supply chain mapping of certified CFRP repair specialists, dynamic benchmarking of resin system performance across 27 global chemical suppliers, and quarterly updates on evolving Chemical Standards—including upcoming revisions to ISO 21967 (CFRP repair qualification) and ASTM D7205 (fiber-reinforced polymer repair testing).

To access our proprietary Delamination Depth Viability Matrix—a live, sector-adjusted calculator incorporating your material specs, environmental profile, and certification requirements—contact TradeNexus Edge for a tailored engineering consultation.
