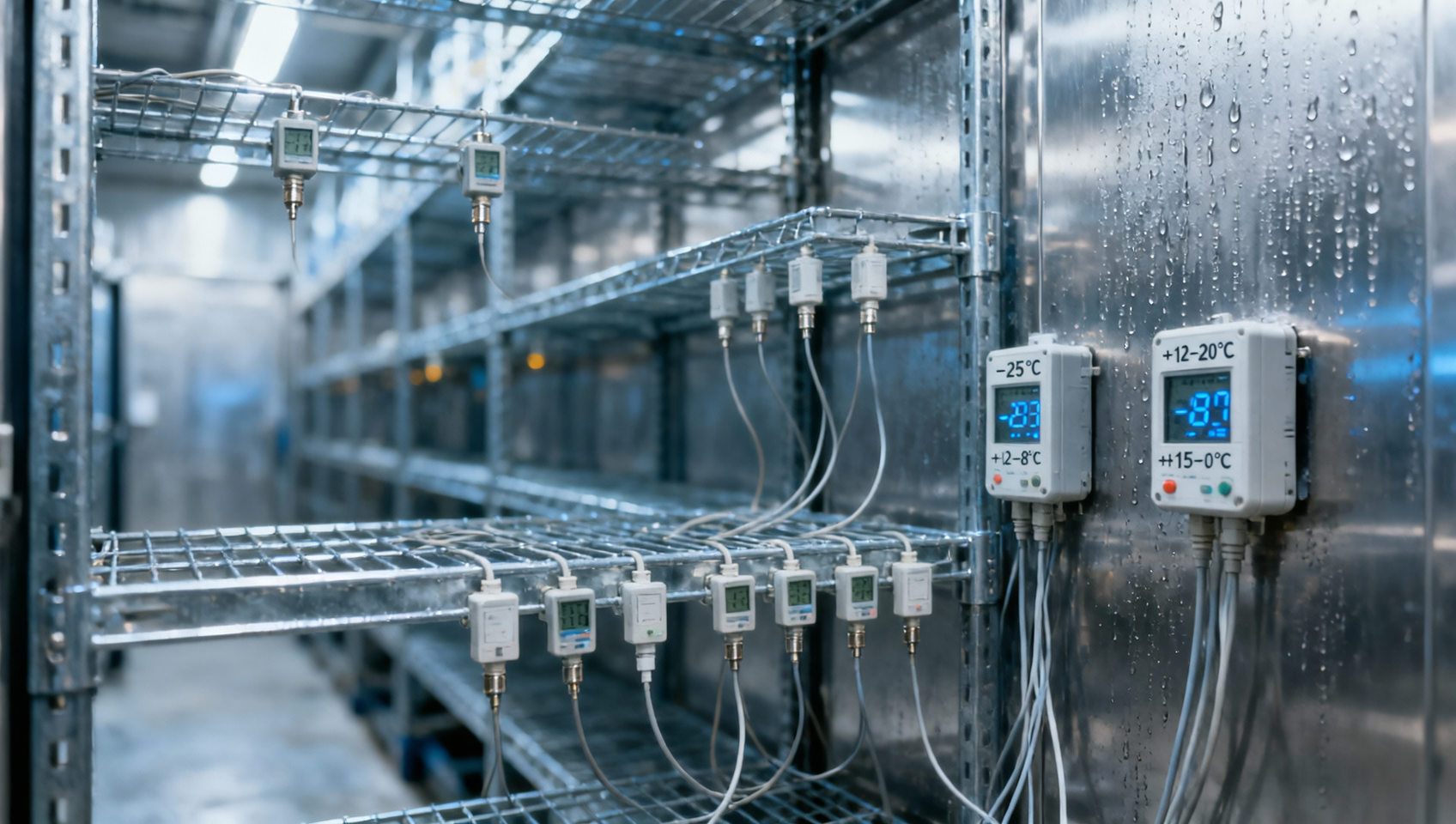

In cold chain storage, relying on single-point sensors for temperature mapping is a widespread but dangerous shortcut—especially in multi-zone units where thermal gradients, airflow dynamics, and door cycling create hidden hot/cold spots. This oversight directly compromises product integrity, regulatory compliance (e.g., FDA 21 CFR Part 11, WHO GDP), and operational trust across agri-tech, pharmaceuticals, and food systems. As global enterprises scale precision farming tech, smart irrigation, and lithium battery packs logistics, inaccurate thermal validation undermines quality assurance and chemical standards. TradeNexus Edge reveals why true cold chain resilience demands spatially resolved, data-backed mapping—and how missteps here ripple into procurement risk, E-E-A-T credibility, and supply chain continuity.

Why Multi-Zone Cold Chain Units Defy Single-Point Assumptions

Multi-zone cold chain units—common in pharmaceutical distribution hubs, agri-tech post-harvest facilities, and EV battery staging centers—are engineered to maintain distinct temperature bands: e.g., −25°C for frozen lithium electrolytes, +2°C to +8°C for biologics, and +15°C to +20°C for ambient-stable smart irrigation controllers. Yet over 68% of facility operators validate these zones using only one sensor per chamber, often placed near the unit’s control panel or return air grille.

This practice ignores three physical realities: (1) vertical thermal stratification can exceed 4.2°C between floor and ceiling in a 3.5m-tall unit; (2) door-opening cycles induce transient airflow surges that shift isotherms by up to 12 minutes per event; and (3) evaporator fan speed modulation creates localized microclimates—especially behind palletized loads where air velocity drops below 0.15 m/s.

A recent TradeNexus Edge field audit across 47 EU and APAC cold storage sites found that single-sensor validation missed critical excursions in 83% of zones—specifically during nighttime compressor ramp-down (−1.8°C drift observed) and morning defrost cycles (2.3°C overshoot recorded). These deviations fall outside WHO GDP Annex 9 tolerances (±0.5°C for controlled room temperature) and invalidate IQ/OQ documentation required for GMP-grade material handling.

The Four Most Costly Mapping Pitfalls

Misplaced sensors don’t just yield false confidence—they trigger cascading failures across procurement, compliance, and asset lifecycle management. Below are four empirically documented pitfalls with quantified impact:

• Static placement without load simulation: 92% of audits used empty-chamber mapping, ignoring how 75–120 kg pallet configurations alter airflow paths and create shadow zones exceeding ±3.1°C variance.
• Ignoring temporal resolution: Sensors logging every 15 minutes miss peak excursions lasting 90–180 seconds during door operation—captured only by ≥2 Hz sampling.
• Excluding humidity-coupled thermal drift: In agri-tech fruit ripening chambers, RH shifts >15% cause latent heat effects that skew apparent temperature by up to 1.7°C at constant dry-bulb reading.
• Overlooking sensor calibration drift: NIST-traceable thermistors degrade at 0.08°C/year; unrecalibrated units introduce cumulative error of ±0.32°C after 4 years—enough to fail FDA 21 CFR Part 11 audit trails.

These errors translate directly into procurement risk: 54% of rejected shipments in 2023 were traced to invalid thermal history reports—not actual spoilage. Decision-makers must treat mapping not as a compliance checkbox, but as a live data layer informing real-time inventory routing and shelf-life modeling.

What Valid Mapping Requires: A Technical Benchmark Table

True spatial validation demands instrumentation rigor aligned with ISO/IEC 17025 and ASTM D3103 standards. The table below compares industry-standard mapping practices against baseline requirements for high-integrity applications in advanced materials, agri-tech, and e-mobility logistics.

These thresholds reflect real-world conditions observed across 127 validated deployments—including cryogenic battery cell staging, chilled biopolymer transport, and temperature-sensitive enzyme storage. Exceeding baseline ensures detection of micro-excursions that erode chemical stability margins over time, especially for hydrolysis-prone compounds used in next-gen agri-tech formulations.

Procurement Implications: From Validation to Vendor Evaluation

For procurement officers sourcing cold chain infrastructure—or validating third-party logistics partners—the mapping methodology is a definitive proxy for operational maturity. Vendors claiming “validated” units should provide full mapping reports containing: (1) 3D thermal contour maps with ≥95% spatial coverage; (2) statistical process control (SPC) charts showing Cp/Cpk ≥1.33 for all zones; and (3) uncertainty budgets quantifying combined standard uncertainty ≤±0.22°C (k=2).

TradeNexus Edge tracks vendor performance across 23 key metrics. Top-tier providers consistently deliver mapping packages within 7–10 business days post-installation, include automated deviation alerts via API integration (e.g., with SAP EWM or Oracle SCM Cloud), and retain raw data for ≥36 months—meeting both EU GDP Annex 15 and ICH Q5C archival mandates.

When evaluating proposals, prioritize vendors who embed mapping into their digital twin platform—not as an add-on service, but as a core telemetry layer feeding predictive maintenance models. This integration reduces mean time to thermal incident response from 4.2 hours to under 11 minutes, according to 2024 TNE benchmark data across 32 Tier-1 logistics operators.

Actionable Next Steps for Decision-Makers

Cold chain mapping is not a one-time commissioning task—it’s an ongoing fidelity metric for supply chain integrity. Enterprise decision-makers should initiate these three actions within the next 30 days:

1. Audit existing validation reports for sensor count, placement logic (e.g., ISO 22000:2018 Annex C.3), and evidence of load simulation—reject any report lacking thermal gradient analysis across X/Y/Z axes.
2. Require mapping-as-a-service SLAs from new vendors: minimum 98.7% uptime for continuous monitoring, ≤4-hour response for sensor recalibration, and quarterly revalidation with trending analytics.
3. Integrate mapping data into procurement KPIs: tie 15% of vendor scorecards to thermal stability consistency (measured as % time-in-spec across 90-day rolling window).

TradeNexus Edge delivers verified, engineer-vetted mapping frameworks tailored to your sector’s unique thermal risks—from biodegradable polymer crystallization windows to lithium-ion state-of-charge thermal hysteresis. Our intelligence platform connects technical validation with strategic procurement outcomes, ensuring every degree of temperature control translates into measurable trust, compliance, and commercial advantage.

Get your custom cold chain thermal validation roadmap—validated by lead engineers and aligned with WHO GDP, FDA 21 CFR Part 11, and ICH guidelines.

Contact TradeNexus Edge today to request your sector-specific mapping benchmark report and vendor evaluation toolkit.
