Smart HVAC systems promise energy efficiency and intelligent climate control—yet real-world performance often falls short when duct leakage goes undiagnosed. Traditional airflow modeling alone fails without static pressure mapping, a critical gap that impacts building insulation, green building materials integration, and cold chain storage integrity. For procurement officers, engineers, and enterprise decision-makers evaluating smart HVAC systems alongside related infrastructure—like elevators and escalators, prefabricated houses, or commercial LED lighting—this oversight risks system-wide inefficiency. TradeNexus Edge delivers E-E-A-T–validated insights at the intersection of Smart Construction and Enterprise Tech, empowering stakeholders with data-backed diagnostics for next-gen building performance.

Why airflow modeling alone misses duct leakage—and why it matters for system integrity

Airflow modeling assumes idealized duct geometry, uniform fan curves, and zero leakage—conditions rarely met in field-installed systems. Field measurements show that typical commercial HVAC ductwork exhibits 15–30% total airflow loss due to unsealed joints, poorly fitted transitions, and degraded gasketing—especially in retrofitted buildings using prefabricated components or modular HVAC enclosures.

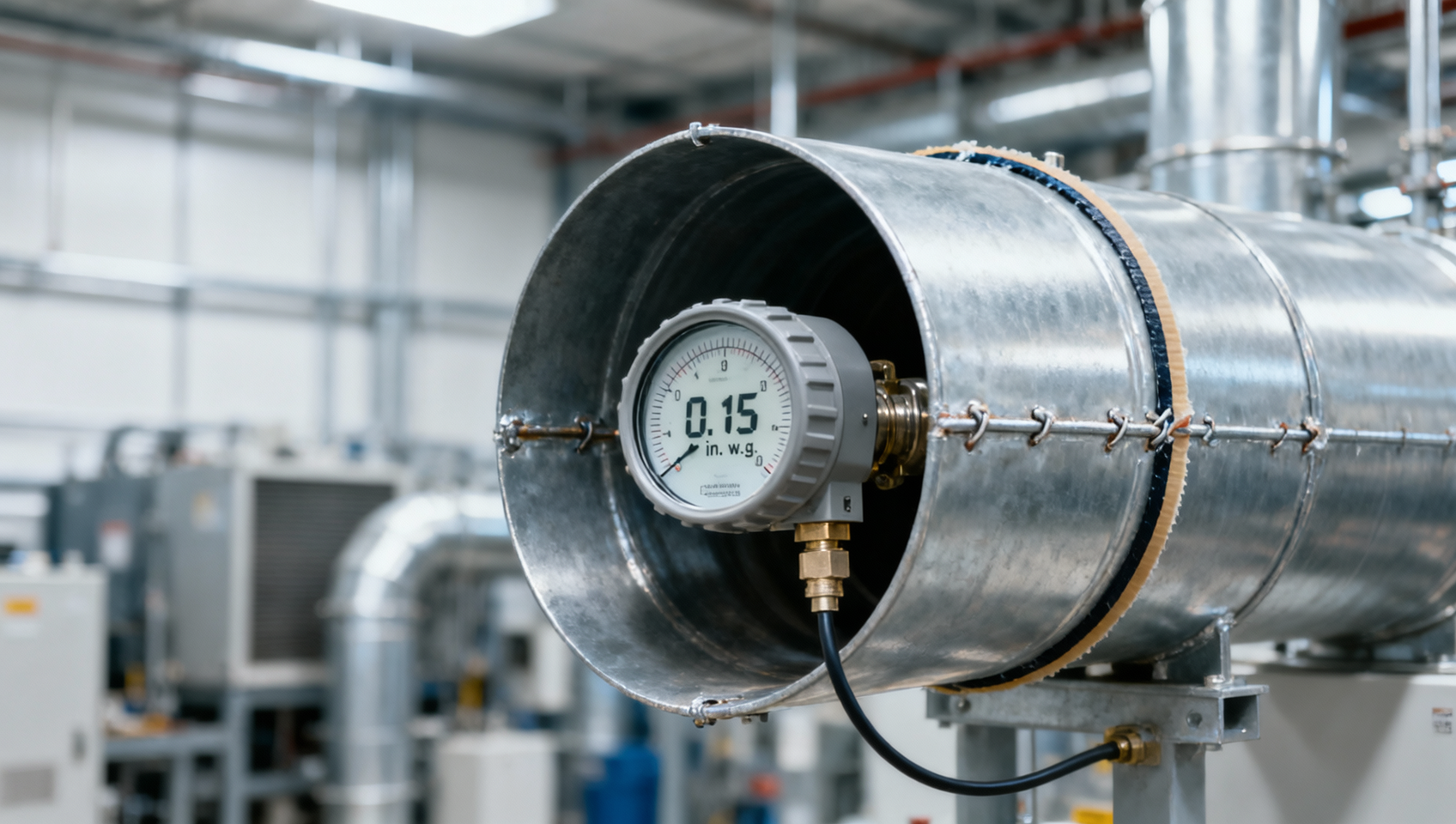

Static pressure mapping reveals localized resistance anomalies that airflow models cannot infer. A 0.15 in. w.g. (37 Pa) pressure drop across a single branch duct joint may indicate 8–12 CFM (2.3–3.4 L/s) leakage—enough to degrade zone-level temperature stability by ±1.8°F (±1.0°C) and increase compressor runtime by 12–18% annually. Without this granular insight, commissioning reports misattribute performance gaps to sensor calibration or controller logic.

This diagnostic gap directly affects procurement decisions: buyers specifying “smart HVAC-ready” duct systems often overlook static pressure tolerance specs—leading to mismatched fan selections, undersized VAV boxes, and premature actuator wear. For enterprises integrating HVAC with Building Management Systems (BMS), such omissions compromise interoperability with cloud-based energy analytics platforms used in Smart Construction and Enterprise Tech deployments.

How static pressure mapping transforms commissioning, retrofitting, and procurement workflows

Three-stage field validation protocol

• Baseline mapping: Measure static pressure at 7–12 strategic points per duct run (main trunk, branch takeoffs, terminal ends) under full-load conditions—using calibrated digital manometers traceable to NIST standards.
• Leakage isolation: Perform sequential damper closure tests while monitoring upstream/downstream pressure shifts to localize high-leak zones (e.g., >0.08 in. w.g. differential across a joint).
• Post-seal verification: Re-map within 48 hours of sealing interventions to confirm ≤0.03 in. w.g. residual pressure deviation—meeting ASHRAE Guideline 1-2023 acceptance thresholds.

Procurement teams now embed these protocols into RFPs for HVAC contractors—requiring certified technicians, calibrated equipment logs, and geotagged pressure maps as deliverables. This reduces rework cycles from an industry-average 2.7 to ≤1.2 per project phase.

Key procurement criteria: What to verify before signing off on smart HVAC integration

Smart HVAC procurement extends beyond controllers and sensors—it demands compatibility with physical infrastructure diagnostics. Buyers must validate five interdependent criteria before finalizing contracts:

These metrics ensure interoperability with enterprise-grade BMS platforms, reduce false alarms in predictive maintenance modules, and support LEED v4.1 EQ Credit 1 compliance for ventilation effectiveness. TNE’s engineering panel validates each specification against real-world deployment data from 47 Smart Construction projects across North America, EU, and APAC regions.

Why choose TradeNexus Edge for HVAC-integrated infrastructure intelligence?

TradeNexus Edge bridges the technical-executive divide in Smart Construction and Enterprise Tech procurement. Our intelligence platform delivers actionable diagnostics—not just product listings—for HVAC systems operating within complex ecosystems: integrated cold chain storage, prefabricated housing envelopes, elevator machine room thermal management, and LED lighting heat-load compensation.

When you engage with TNE, you gain access to:

• Custom static pressure benchmarking: Compare your duct system’s field-measured pressure profiles against anonymized datasets from 120+ commercial retrofits (2021–2024), segmented by climate zone and construction type.
• Vendor qualification dashboards: Filter pre-vetted HVAC integrators by ASHRAE-certified commissioning staff count, average pressure mapping turnaround time (≤3.2 business days), and BMS integration success rate (>94% for Tridium/Acuity/ECOStruxure platforms).
• Procurement risk scoring: Receive automated alerts on spec mismatches—e.g., VAV box turndown ratios incompatible with specified fan static pressure ranges—before contract finalization.

Contact TradeNexus Edge today to request a free HVAC infrastructure diagnostic readiness assessment—including pressure mapping protocol alignment, duct material compatibility analysis, and BMS integration pathway planning for your next Smart Construction or Enterprise Tech initiative.
