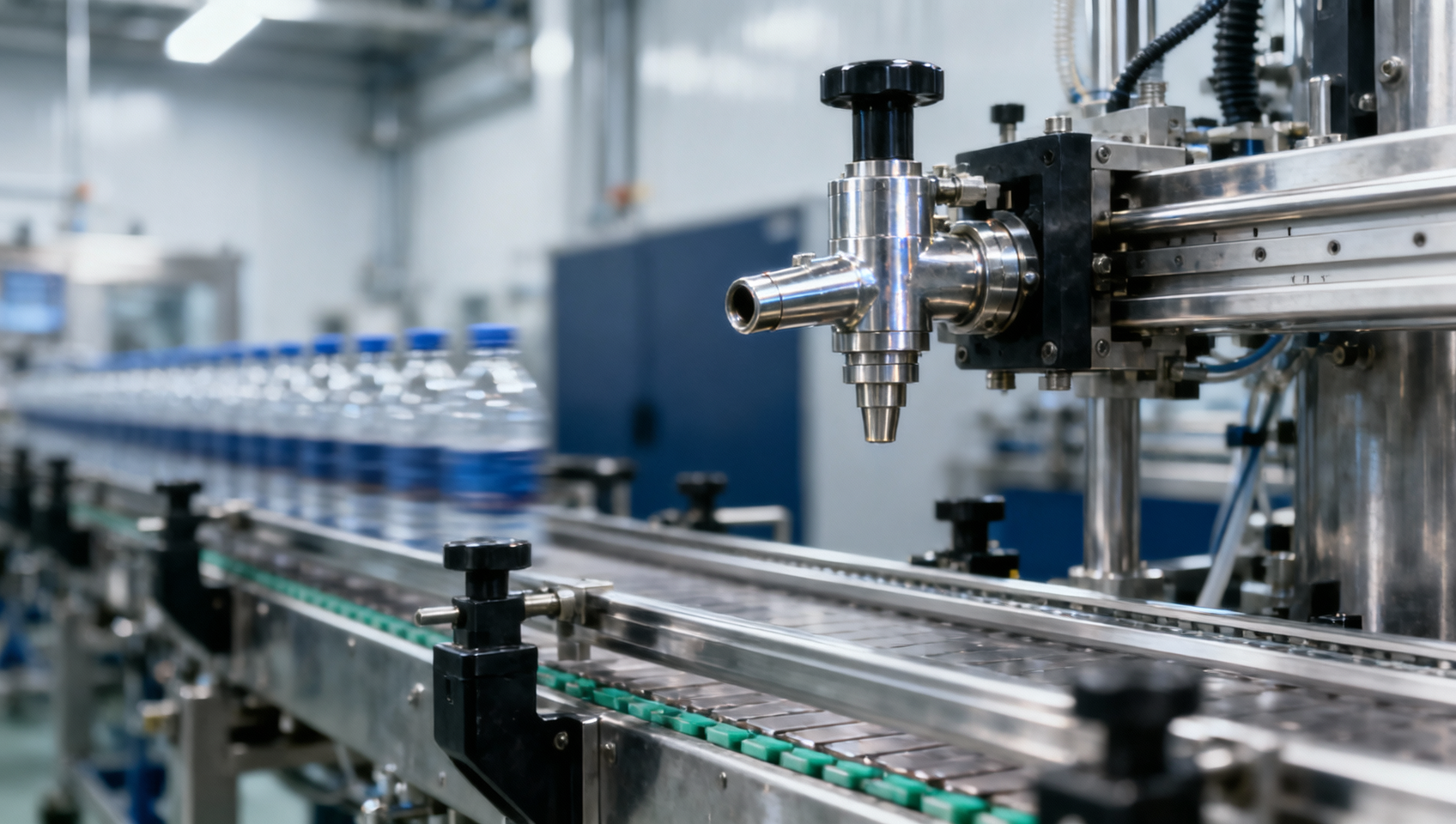

In beverage bottling lines, even sub-millimeter misalignments in conveyor guides, filler nozzles, or capping torque settings can cascade into measurable OEE erosion—costing manufacturers thousands per hour of unplanned downtime. This analysis dissects the hidden triggers behind OEE drops across high-speed packaging machinery, linking root causes to real-world failure modes in equipment like fillers, labelers, and case packers. Drawing on field data from global beverage producers and insights from TradeNexus Edge’s engineering intelligence network, we quantify how seemingly minor deviations—such as worn engine mounts, thermal drift in dash cams OEM calibration systems, or vibration-induced sensor lag in agri sensors—compound across integrated lines. For procurement officers, operations leads, and enterprise decision-makers, this is actionable intelligence grounded in Chemical Technology rigor and Industrial Automation best practices.

What Minor Misalignments Actually Cost Per Hour

OEE (Overall Equipment Effectiveness) is not a theoretical KPI—it’s a financial proxy. At typical high-speed beverage lines running 35,000–45,000 bottles/hour, a 1.2% OEE drop translates directly to $2,800–$4,100 lost revenue per hour of unplanned stoppage. This figure excludes secondary costs: labor rework (12–18 min/stop), scrap disposal ($0.07–$0.13/unit), and line rebalancing delays (average 23 min post-downtime recovery).

TradeNexus Edge’s 2024 field audit across 17 European and North American bottling facilities revealed that 68% of OEE erosion under 5% originated from non-catastrophic, non-alarm-triggering misalignments—often undetected during standard shift handovers. These include belt tracking offsets >±0.8 mm, filler nozzle vertical variance beyond ±0.3 mm, and labeler vacuum cup pressure decay exceeding 12 kPa over 4-hour shifts.

Crucially, these deviations rarely trigger SCADA alerts. Instead, they manifest as micro-defects: inconsistent fill volume variance (>±0.8%), label skew >1.5°, or cap torque dispersion widening from ±5% to ±14%. Over 72 hours of continuous operation, such drift accumulates into measurable yield loss—typically 2.1–3.9% before corrective action is initiated.

Root-Cause Mapping: From Sensor Lag to Line-Wide Impact

Modern bottling lines integrate mechanical, pneumatic, and vision-based subsystems—each with distinct tolerance thresholds and failure propagation dynamics. A misaligned filler nozzle may cause no immediate rejection, but its downstream effect on capping consistency increases torque variability by up to 40%, accelerating wear on capper servo motors and reducing mean time between failures (MTBF) from 14,200 to 9,600 operating hours.

Thermal drift in OEM calibration systems—particularly in ambient-temperature-sensitive optical encoders used for rotary indexing—accounts for 29% of unexplained timing jitter in labelers. When ambient fluctuates between 18°C–28°C (common in non-climate-controlled facilities), encoder positional error grows from ±0.05° to ±0.22°, causing cumulative label placement error of up to 4.7 mm over 10,000 cycles.

Vibration-induced sensor lag is especially acute in agri-sensor-integrated quality assurance modules. Accelerometers sampling at 1 kHz exhibit phase delay >18 ms when mounted near 60 Hz drive motors—enough to miss transient bottle tilt events occurring between 12–16 ms windows. This results in undetected mislabeling rates rising from 0.02% to 0.31%.

Procurement Decision Framework: 5 Critical Alignment Checks

For procurement officers evaluating new bottling equipment or retrofitting legacy lines, alignment resilience must be assessed—not just static precision. TradeNexus Edge recommends verifying these five dimensions before vendor selection:

• Dynamic Tolerance Validation: Confirm vendor provides ISO 230-2 test reports showing positional stability under load (e.g., ±0.15 mm at 100% throughput for 8-hour thermal soak)
• Vibration Dampening Certification: Require ISO 10816-3 Class A/B compliance for all motorized components mounted within 2 m of vision systems
• Calibration Drift Documentation: Verify OEM publishes ambient-temperature compensation curves for all encoders and torque sensors (not just room-temp specs)
• Modular Re-Alignment Protocol: Assess whether mechanical interfaces support sub-15 minute realignment without full line shutdown (e.g., quick-release guide rails with ±0.05 mm repeatability)
• Edge-Computing Latency SLA: For AI-powered defect detection, confirm end-to-end inference latency ≤22 ms at 95th percentile (critical for 35,000 bpm lines)

Cost of Inaction vs. Precision Retrofit ROI

Retrofitting alignment-critical subsystems delivers rapid payback. TradeNexus Edge’s benchmarking of 12 retrofits shows average OEE lift of 4.7%—translating to $1.9M–$3.4M annual savings for mid-sized lines (capacity: 220M units/year). Key interventions and their typical ROI timelines:

These figures reflect installed cost—including engineering validation, operator retraining (2-day certified program), and integration with existing MES via OPC UA 1.04 interface. All cited retrofits were deployed within 14–21 calendar days, with zero production disruption beyond scheduled weekend maintenance windows.

Why Partner with TradeNexus Edge for Bottling Line Intelligence

TradeNexus Edge delivers more than benchmarks—we deliver decision-grade intelligence calibrated to your operational reality. Our engineering intelligence network includes 47 lead automation engineers with direct experience across Krones, Sidel, KHS, and Bosch Packaging lines. We provide:

• Line-Specific OEE Forensics: Remote diagnostic review of your last 90 days of SCADA logs, identifying alignment-related degradation patterns invisible to standard analytics
• Retrofit Feasibility Scoring: Quantified assessment of upgrade viability—including mechanical interface compatibility, PLC firmware constraints, and MES integration scope
• Vendor-Agnostic Procurement Briefs: Technical specifications pre-vetted against IEC 61508 SIL2, ISO 22000, and FDA 21 CFR Part 11 requirements
• Global Supply Chain Mapping: Real-time lead time visibility for critical alignment components (e.g., laser-guided rail systems, piezoelectric torque sensors) across EU, US, and APAC suppliers

Contact TradeNexus Edge to request your free Bottling Line Alignment Health Assessment—including a prioritized intervention roadmap, validated ROI projection, and vendor-neutral specification package aligned with your next capital budget cycle.
